The 74AHCT1G04GW-G is a high-speed Si-gate CMOS device from NXP Semiconductors designed to deliver the functionality of a single inverter gate. This component is part of the 74AHC/AHCT family, which is known for its robust performance and compatibility with TTL levels. The device is specifically engineered to meet the requirements of a wide range of applications, from industrial to consumer electronics.

Key Features

• Logic Type: Inverter
• Logic Family: AHCT
• Operating Voltage: 4.5V to 5.5V
• Output Current: -8mA / 8mA
• Propagation Delay Time: 8.5ns at 4.5V
• Operating Temperature: -40°C to 125°C
• Mounting Type: Surface Mount

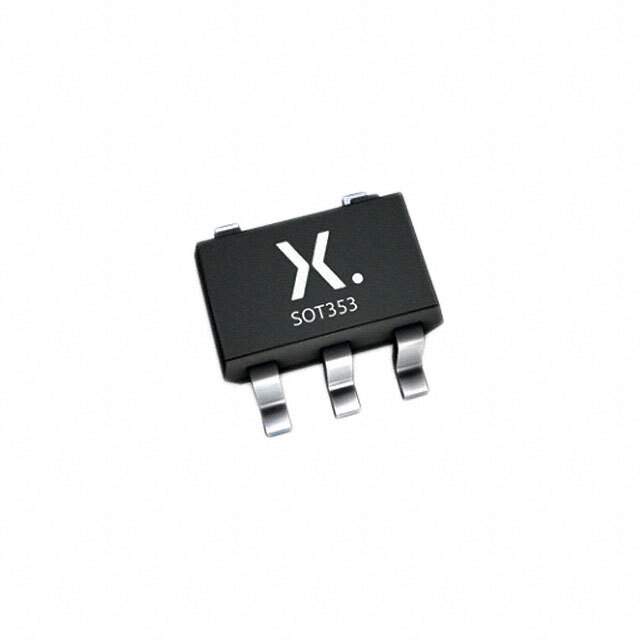

• Package / Case: SC-88 (SOT353)

Product Description

The 74AHCT1G04GW-G is a single inverter gate that operates with a 5V supply voltage and is capable of translating inputs near the ground level to outputs that are at the supply level. This makes it suitable for interfacing with TTL levels. The device features a high noise immunity and low power consumption, making it an ideal choice for a variety of applications where space and power efficiency are critical.

With its ultra-small SC-88 (SOT353) surface-mount package, the 74AHCT1G04GW-G is perfect for use in space-constrained applications. Its balanced propagation delays and high noise immunity of its CMOS technology ensure reliable operation in complex circuit designs. The device is also characterized for operation from -40°C to 125°C, which allows for its use in industrial environments with extreme temperature conditions.

Whether you are designing an embedded system, working on signal processing, or need a reliable component for logic level conversion, the NXP 74AHCT1G04GW-G offers the performance and reliability required for your applications.

Applications

• Logic level conversion
• Signal processing
• Embedded systems
• Control systems
• Power management
