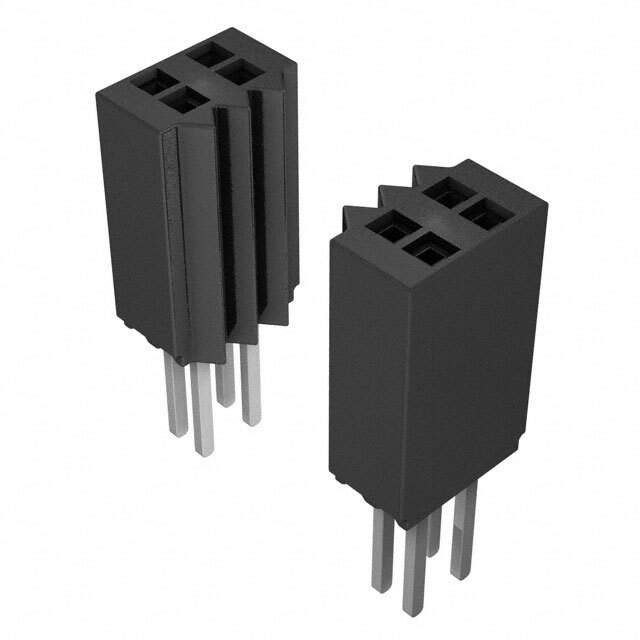

SMS-117-02-S-D

Name: SMS-117-02-S-D
Brand: Samtec Inc.
SKU: 1292479
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-117-02-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMS-117-02-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	34
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.190" (4.83mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SMS-117
Standard Package	26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292479-SMS-117-02-S-D
Ultra Librarian 3D Model	Ultra Librarian SMS-117-02-S-D CAD Model

Alternative Products

Description

The SMS-117-02-S-D is a rectangular connector from Samtec Inc.

Connector Type: Receptacle
Fastening Type: Push-Pull
Contact Shape: Square
Contact Material: Phosphor Bronze
Positions: 34
Contact Type: Forked
Series: SMS
Pitch: 0.050 inches (1.27mm)
Style: Board to Board
Positions Loaded: All
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.335 inches (8.51mm)
Temperature Range: -55°C to 125°C
Current Rating: 5A per contact
ECCN: EAR99
REACH: Unaffected
Package: Tube
