The 74AHC30BQ/S505115 is a high-performance integrated circuit from NXP Semiconductors, renowned for its reliability and efficiency in digital applications. This particular model is part of the 74AHC family, which is designed to operate at high speeds with low power consumption, making it an ideal choice for a broad range of electronic devices.

Key Features

• Logic Type: The 74AHC30BQ/S505115 is an 8-input NAND gate, which is a fundamental building block in digital electronics. This logic gate performs the NAND function, outputting a low signal only when all its inputs are high.

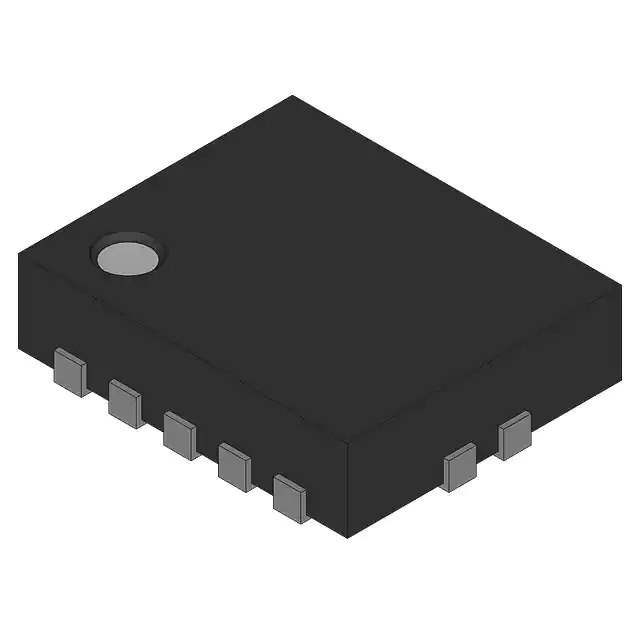

• Package: It comes in a DHVQFN14 plastic dual in-line compatible package. The compact size of the package allows for a smaller PCB footprint, which is crucial for space-constrained applications.
• Supply Voltage Range: This device operates over a wide supply voltage range from 2.0V to 5.5V, making it versatile for use in various systems with different power requirements.
• High-Speed Performance: The 74AHC30BQ/S505115 boasts high-speed performance with a typical propagation delay (t_pd) that ensures swift response times in critical applications.
• Temperature Range: It is designed to operate within an industrial temperature range, ensuring reliable performance under varying environmental conditions.
• Low Power Dissipation: The device has a low power dissipation, which is essential for battery-operated devices and applications where energy efficiency is a priority.
• Compliance: It is compliant with JEDEC standard no. 7A, which includes requirements for high-speed Integrated Circuits (ICs).

Applications

The versatility of the 74AHC30BQ/S505115 makes it suitable for a wide array of applications, including:

• Logic function synthesis
• Computing systems
• Signal processing
• Control systems
• Telecommunications
• Portable and battery-powered devices

In conclusion, the 74AHC30BQ/S505115 from NXP Semiconductors is a robust and efficient solution for designers looking to implement complex logic functions in their electronic systems. Its high-speed performance, low power consumption, and wide operating voltage range make it an excellent choice for a multitude of digital applications.
