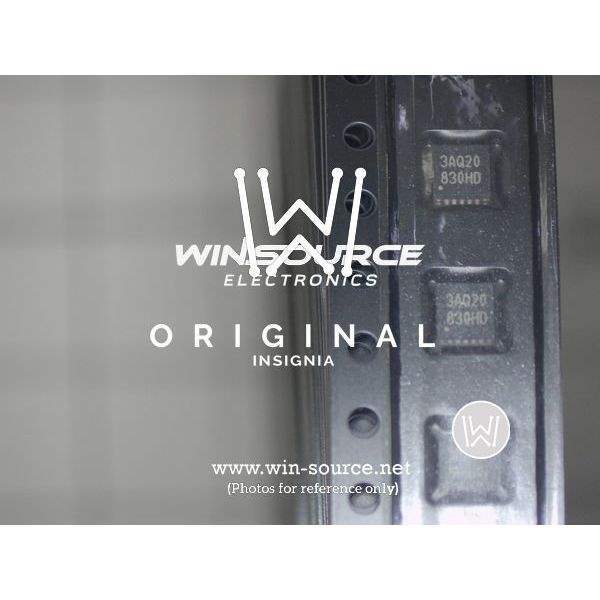

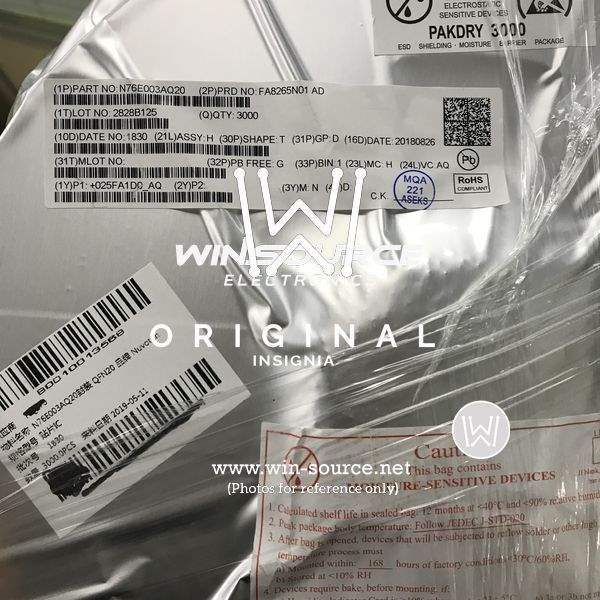

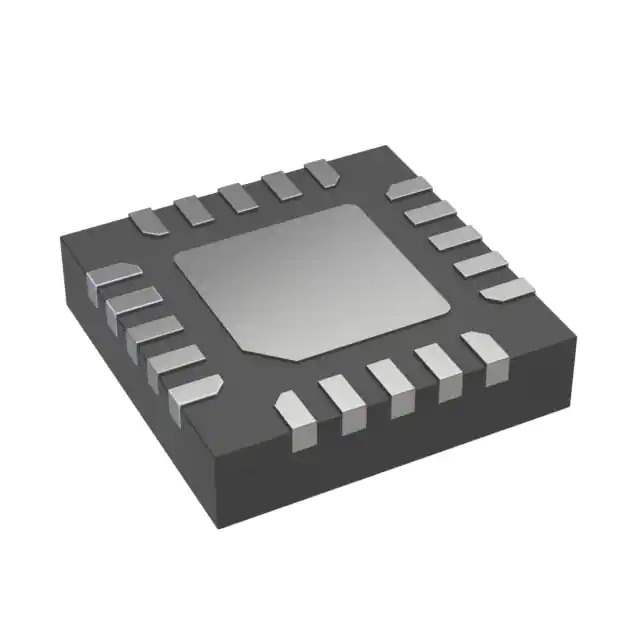

N76E003AQ20 Nuvoton Technology Corporation of America N76E003AQ20 Real Image N76E003AQ20 real image 2 N76E003AQ20 label picture N76E003AQ20 label picture 2 N76E003AQ20 label picture 3 N76E003AQ20 real image 3 N76E003AQ20 real image 4
Same model may have multiple batches, images only for reference.
N76E003AQ20 Nuvoton Technology Corporation of America N76E003AQ20 Real Image N76E003AQ20 real image 2 N76E003AQ20 label picture N76E003AQ20 label picture 2 N76E003AQ20 label picture 3 N76E003AQ20 real image 3 N76E003AQ20 real image 4
N76E003AQ20 Nuvoton Technology Corporation of America N76E003AQ20 Real Image N76E003AQ20 real image 2 N76E003AQ20 label picture N76E003AQ20 label picture 2 N76E003AQ20 label picture 3 N76E003AQ20 real image 3 N76E003AQ20 real image 4
Same model may have multiple batches, images only for reference.

N76E003AQ20

Part No N76E003AQ20
Manufacturer Nuvoton Technology Corporation of America
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 18KB FLASH 20QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Nuvoton Technology Corporation of America
Series N76
Package Tape & Reel
Product Status Active
Programmable Not Verified
Core Processor 8051
Core Size 8-Bit
Speed 16MHz
Connectivity I2C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, I2S, POR, PWM, WDT
Number of I/O 18
Program Memory Size 18KB (18K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 5.5V
Data Converters A/D 8x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 20-WFQFN Exposed Pad
Supplier Device Package 20-QFN (3x3)
Base Product Number N76E003
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 755290-N76E003AQ20
Ultra Librarian 3D Model Ultra Librarian N76E003AQ20 CAD Model

Description

The 755290-N76E003AQ20 is an 8-bit microcontroller from the N76 series of embedded microcontrollers from Nuvoton Technology Corporation of America.

  • Core Processor: 8051 core
  • Speed: 16MHz
  • Package: tape & reel
  • Standard Package: 3,000 pcs
  • I/O Pins: 18
  • Connectivity: I2C, SPI, and UART/USART
  • Peripherals: Brown-out Detect/Reset, I2S, POR, PWM, and WDT
  • Program Memory Size: 18KB (18K x 8)
  • EEPROM Size: 4K x 8
  • RAM Size: 1K x 8
  • Oscillator: Internal oscillator
  • Programmable: Not programmable
  • Mounting Type: Surface mountable
  • Package: 20-WFQFN exposed pad
  • Operating Temperature Range: -40°C to 105°C
  • Status: active
