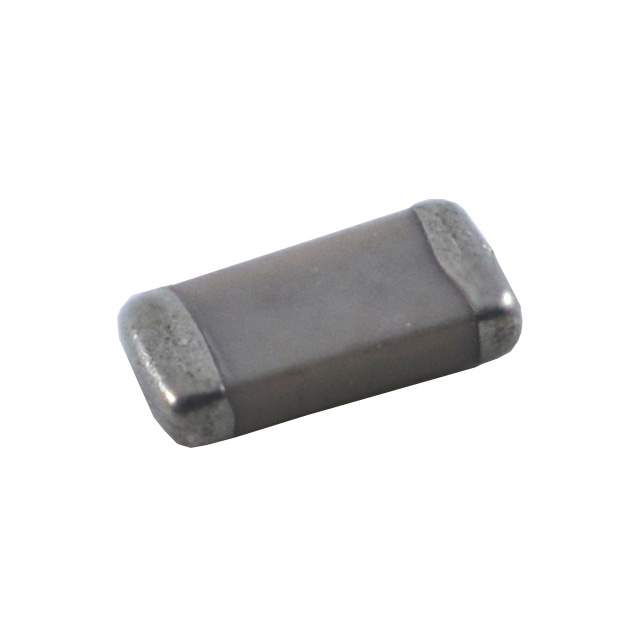

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr NTE Electronics, Inc
Series SMC
Package Bag
Capacitance 3.3 pF
Tolerance ±0.25pF
Voltage - Rated 50V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Thickness (Max) 0.051" (1.30mm)
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8532.24.0060
Other Names 2368-SMC0805C3D3
Standard Package 1
Win Source Part Number 1125152-SMC0805C3D3
Ultra Librarian 3D Model Ultra Librarian SMC0805C3D3 CAD Model

Description

The SMC0805C3D3 is a ceramic capacitor manufactured by NTE Electronics, Inc. It has a capacitance of 3.3 pF and is rated for 50V. The tolerance for this capacitor is ±0.25pF and it has a temperature coefficient of C0G, NP0. The SMC0805C3D3 is surface mountable and has a package/case of 0805 (2012 Metric). It has a temperature range of -55°C to 125°C and is RoHS non-compliant. The dimensions of this capacitor are 0.079" L x 0.047" W (2.00mm x 1.20mm). It belongs to the Capacitors>Ceramic Capacitors category and is a part of the SMC series.
