Same model may have multiple batches, images only for reference.

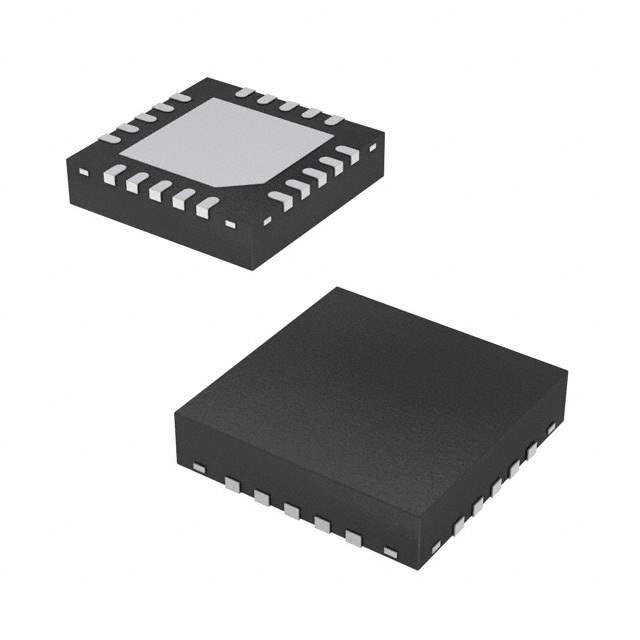

NRF24L01-REEL7 Real Image
Same model may have multiple batches, images only for reference.

NRF24L01-REEL7

Part No NRF24L01-REEL7
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 20-VFQFN
Datasheet
NRF24L01-REEL7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Reel package
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz
Data Rate (Maximum) 2Mbps
Power - Output 0dBm
Sensitivity -85dBm
Serial Interfaces SPI
Operating Supply Voltage 1.9 V ~ 3.6 V
Current - Receiving 11.1mA ~ 12.3mA
Current - Transmitting 7mA ~ 11.3mA
Operating Temperature Range -40°C ~ 85°C
Package 20-VFQFN Exposed Pad
Win Source Part Number 790788-NRF24L01-REEL7
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian NRF24L01-REEL7 CAD Model

Description

The Nordic Semiconductor ASA 790788-NRF24L01-REEL7 is an electronic component from Nordic Semiconductor ASA.

  • Package: Reel
  • Type: TxRx-only
  • Operating Temperature Range: -40°C ~ 85°C
  • Frequency: 2.4GHz
  • Operating Supply Voltage: 1.9 V ~ 3.6 V
  • Power Output: 0dBm
  • Sensitivity: -85dBm
  • Current - Receiving: 11.1mA ~ 12.3mA
  • Current - Transmitting: 7mA ~ 11.3mA
  • Data Rate: 2Mbps
