Same model may have multiple batches, images only for reference.

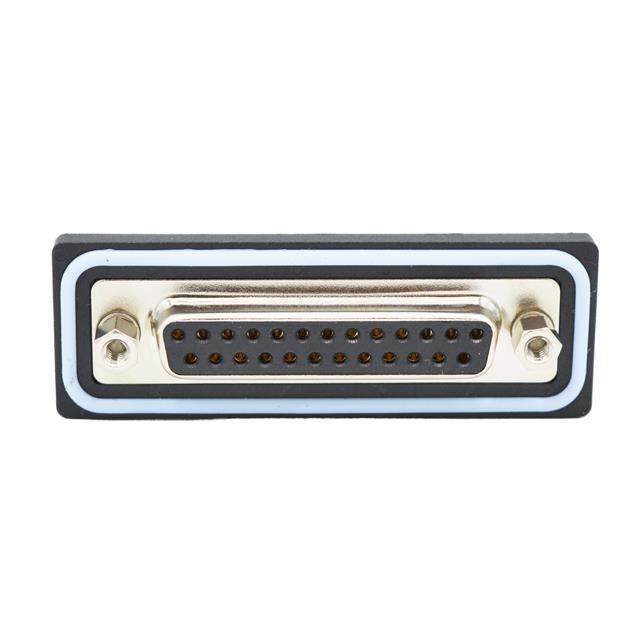

SDF-R25-213L011 Real Image
Same model may have multiple batches, images only for reference.

SDF-R25-213L011

Part No SDF-R25-213L011
Manufacturer NorComp Inc.
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
SDF-R25-213L011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr NorComp Inc.
Series NANOOK
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Brass
Temperature Range - Operating -25°C ~ 85°C
Base Product Number SDF-R25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 37-SDF-R25-213L011
Standard Package 36
Win Source Part Number 1198851-SDF-R25-213L011
Ultra Librarian 3D Model Ultra Librarian SDF-R25-213L011 CAD Model

Description

The NANOOK series of D-Sub Connectors is a reliable and versatile connector that is designed to meet the needs of various applications.

  • Win Source Part Number: 1198851-SDF-R25-213L011
  • Connector Type: Receptacle, female sockets
  • Number of Positions: 25
  • Color: Black
  • Ingress Protection: IP67 (Dust-tight and waterproof)
  • Material: Steel and nickel-plated
  • Shell Size: 3 (DB, B)
  • Operating Temperature: -25°C to 85°C
  • Mounting: Panel mount, through hole, and right-angle
  • Contact Type: Signal
