Part No 684M13W3103L461
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies

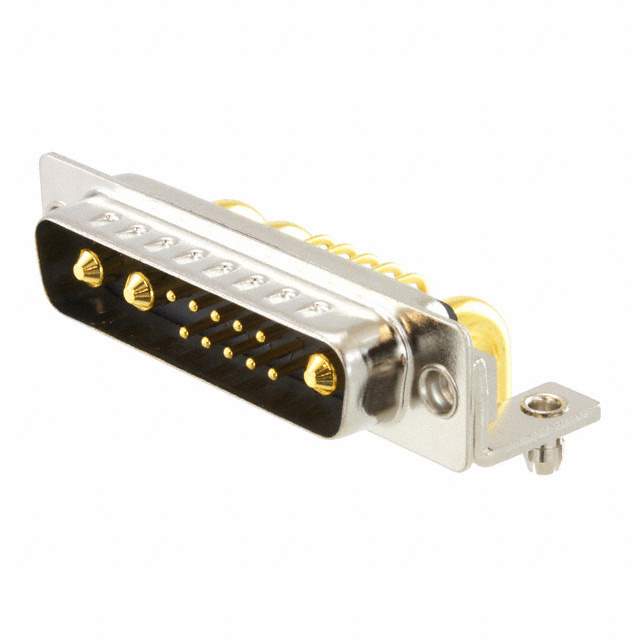

Description CONN D-SUB PLUG 13POS R/A SLDR / 13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
Datasheet
684M13W3103L461 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Power-D 684M
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 13 (10 + 3 Power)
Number of Rows 2
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B) - 13C3, 13W3
Contact Type Signal and Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A, 40A
Backset Spacing 0.370" (9.40mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 684M13W
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340529-684M13W3103L461
Ultra Librarian 3D Model Ultra Librarian 684M13W3103L461 CAD Model

Description

The electronic component with Id 1155808 is a D-Sub connector assembly manufactured by NorComp Inc.

  • Positions: 13 (10 signal, 3 power)
  • Connector Type: Plug, Male Pins
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Temperature Range: -55°C to 125°C
  • Current Rating: 5A and 40A
  • Package Quantity: 50
  • Category: Connectors and Interconnects
  • Base Product Number: 684M13W
