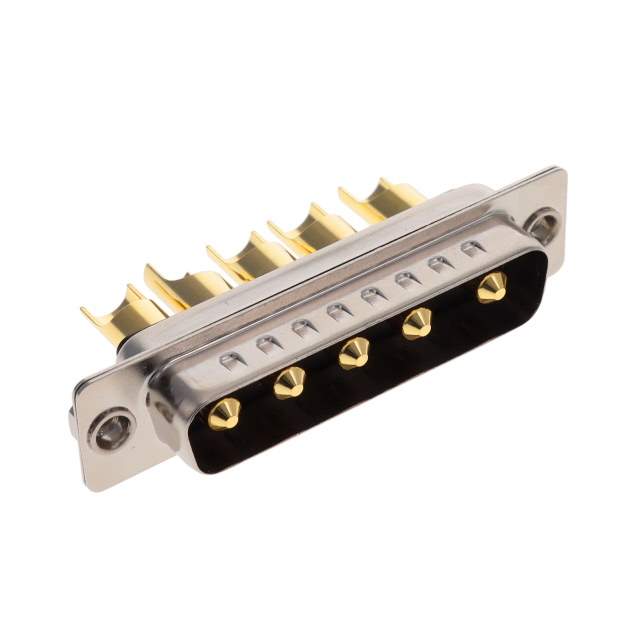

680M5W5103L411 Real Image
Same model may have multiple batches, images only for reference.

680M5W5103L411

Part No 680M5W5103L411
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 5P PNL MNT / 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Datasheet
680M5W5103L411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 680M
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 5 (Power)
Number of Rows 1
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B) - 5W5
Contact Type Power
Flange Feature Cable Side (4-40)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 40A
Features Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 680M5W5
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351107-680M5W5103L411
Ultra Librarian 3D Model Ultra Librarian 680M5W5103L411 CAD Model

Description

The NorComp Inc. D-Sub Connector Assembly is designed with 5 power positions suitable for various applications.

  • Positions: 5 Power
  • Connector Type: Plug
  • Pin Type: Male
  • Grounding: Grounding Indents
  • Contact Finish: Gold with Flash Finish Thickness
  • Termination: Solder Cup
  • Contact Form: Machined
  • Contact Material: Copper Alloy
  • Shell Material: Steel, Nickel Plated Finish
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Size: 3 (DB, B) - 5W5
  • Temperature Range: -55°C to 125°C
  • Current Rating: 40A
  • RoHS Compliant: Yes
  • AEC-Q200 Ratings: Yes
