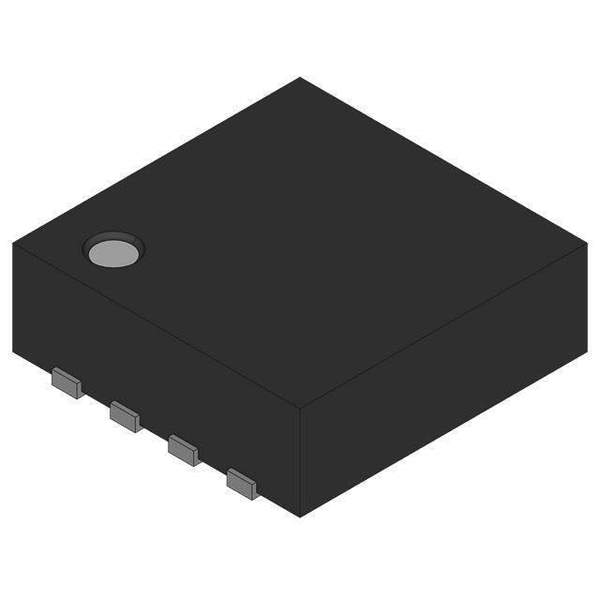

NC7WZ38L8X Real Image
Same model may have multiple batches, images only for reference.

NC7WZ38L8X

Part No NC7WZ38L8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 2CH 2-INP 8MICROPAK
Datasheet
NC7WZ38L8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 2
Number of Inputs 2
Features Open Drain
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low -, 32mA
Max Propagation Delay @ V, Max CL 3.4ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-MicroPak
Dimension 8-UFQFN
Win Source Part Number 1081832-NC7WZ38L8X
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ38L8X CAD Model

Description

The NC7WZ38L8X is a NAND gate integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Feature: Open drain
  • Circuits: Two
  • Maximum Propagation Delay: 3.4ns @ 5V, 50pF
  • Current-Quiescent: 1μA
  • Mounting: SMD (SMT)
  • Category: Integrated Circuits
  • Supply and Demand Status: Balanced
  • Packaging: Reel - TR
  • Quantity per Package: 5k pcs
