Same model may have multiple batches, images only for reference.

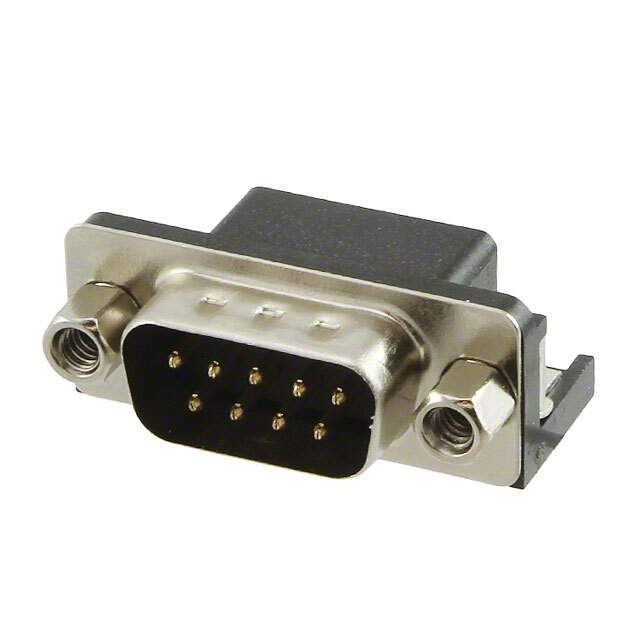

182-009-113R561 Real Image
Same model may have multiple batches, images only for reference.

182-009-113R561

Part No 182-009-113R561
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
182-009-113R561 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 182
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Grounding Indents
Color Black
Dielectric Material Polyamide (PA9T) , Nylon 9T
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 182-009
Standard Package 90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339676-182-009-113R561
Ultra Librarian 3D Model Ultra Librarian 182-009-113R561 CAD Model

Description

The 182-009-113R561 is a D-Sub connector assembly with 9 positions and a black color.

  • Number of Positions: 9
  • Color: Black
  • Features: Board Lock, Grounding Indents
  • Connector Type: Plug
  • Contact Type: Male Pins
  • Contact Finish: Gold (Flash Thickness)
  • Package: Tray
  • Number of Rows: Two
  • Termination: Through-Hole Solder
  • Current Rating: 5A
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Panel Mount, Through-Hole, Right Angle
  • Flange Feature: Mating Side, Female Screw Lock (4-40)
  • Shell Material: Steel (Nickel-Plated)
  • Dielectric Material: Polyamide (PA9T), Nylon 9T
  • Manufacturer: NorComp Inc.
