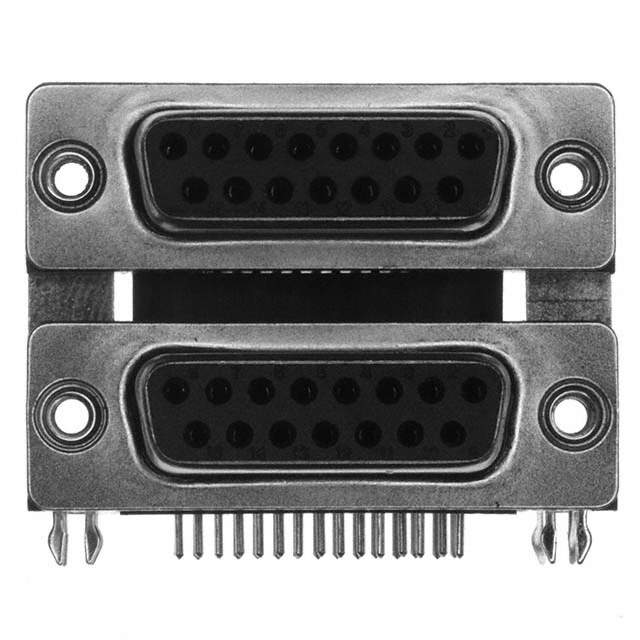

This is a black colored D-sub connector assembly with a 2 (DA, A) ; 2 (DA, A) shell size and connector layout.

• Shell Size and Connector Layout: 2 (DA, A) ; 2 (DA, A)
• Number of Positions: 15, 15
• Connector Style: Stacked D-Sub
• Connector Type: Receptacle, Female Sockets
• Contact Type: Signal
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: Flash
• Number of Rows: 2
• Housing/Shell Flange Feature: (4-40)
• Shell Material and Finish: Steel, Nickel Plated
• Dielectric Material: Polyamide (PA9T), Nylon 9T
• Wire Gauge: -
• Mounting Type: Panel Mount, Through Hole, Right Angle
• Temperature Range: -55°C ~ 105°C
• ECCN: EAR99
• HTSUS Code: 8536.69.4040
• Packaging: Tray
• Standard Package: 35
