Same model may have multiple batches, images only for reference.

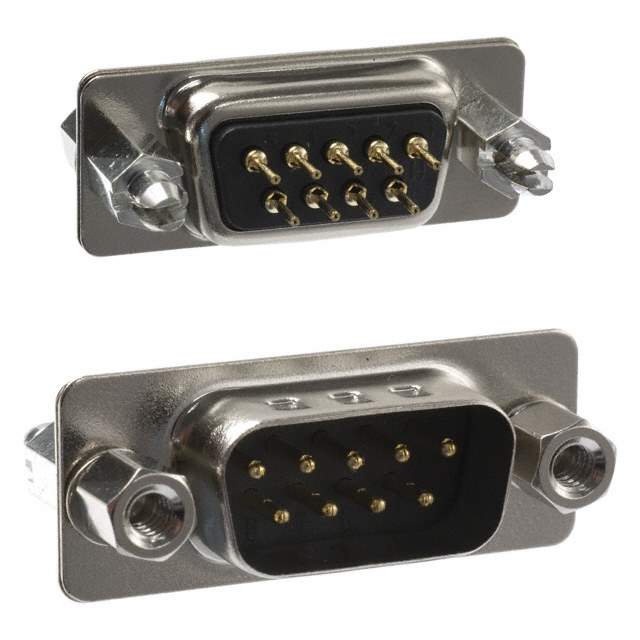

171-009-113R911 Real Image
Same model may have multiple batches, images only for reference.

171-009-113R911

Part No 171-009-113R911
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9P PNL MNT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
171-009-113R911 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 171
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40) ; Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock, Grounding Indents
Color Black
Contact Form Stamped
Dielectric Material Polyamide (PA9T) , Nylon 9T
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 171-009
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337063-171-009-113R911
Ultra Librarian 3D Model Ultra Librarian 171-009-113R911 CAD Model

Description

This is a D-Sub connector assembly from NorComp Inc., which is a part of the 171 series. The manufacturer of this product is NorComp Inc.

  • Series: 171
  • Number of Positions: 9
  • Color: Black
  • Features: Board Lock, Grounding Indents
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Packaging: Tray
  • Contact Form: Stamped
  • Connector Style: D-Sub
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: Panel Mount
  • Operating Temperature: -50°C ~ 100°C
