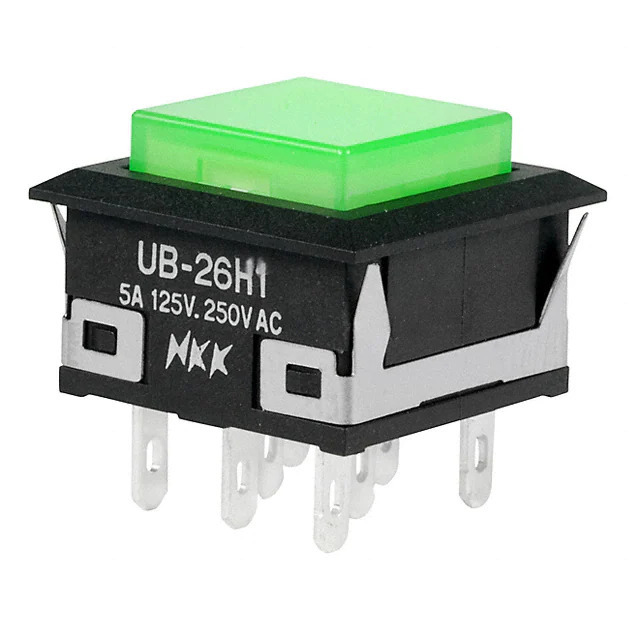

UB26KKW015F-FF NKK Switches
Same model may have multiple batches, images only for reference.

UB26KKW015F-FF

Part No UB26KKW015F-FF
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 5A 125V / Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr NKK Switches
Series UB
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Type Standard, Illuminated
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Green
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1 VDC
Termination Style Solder Lug
Ingress Protection -
Features Stainless Steel
Panel Cutout Dimensions Square - 16.20mm x 16.20mm
Temperature Range - Operating -25°C ~ 50°C
Mechanical Life 200,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number UB26KKW
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1355275-UB26KKW015F-FF
Ultra Librarian 3D Model Ultra Librarian UB26KKW015F-FF CAD Model

Description

The UB26KKW015F-FF is a panel mount, snap-in pushbutton switch with a current rating of 5A (AC/DC) from NKK Switches.

  • Voltage Rating: 125V (AC) and 30V (DC)
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Square Button
  • Actuator Color: Green
  • Illumination: Green LED
  • Illumination Voltage: 2.1VDC
  • Construction: Stainless Steel
  • Panel Cutout Dimensions: 16.20mm x 16.20mm
  • Mechanical Life: 200,000 cycles
  • Electrical Life: 10,000 cycles
  • Packaging: Bulk
  • Temperature Range: -25°C to 50°C
