Part No S7A
Manufacturer NKK Switches
Catalog Toggle Switches

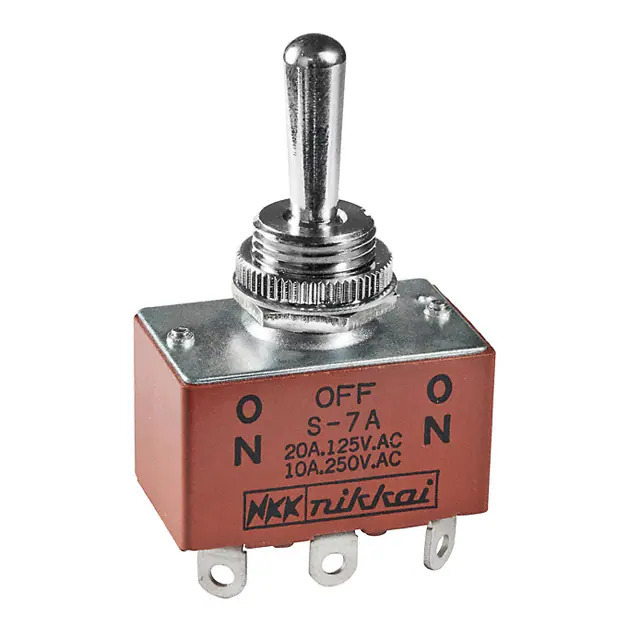

Description SWITCH TOGGLE DPDT 20A 125V / Toggle Switch DPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 20A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection -
Features -
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375978-S7A
Ultra Librarian 3D Model Ultra Librarian S7A CAD Model

Description

The S7A is a DPDT toggle switch from NKK Switches' S series.

  • Current Rating: 20A (AC/DC)
  • Voltage Rating: 125 V AC and 30 V DC
  • Operating Temperature Range: -10°C to 70°C
  • Mounting Type: Panel Mount
  • Actuator Type: Standard Round
  • Actuator Material: Brass, Chrome Plated
  • Panel Cutout: 12.50mm diameter
  • Bushing Thread: M12 x 1
  • Electrical Life: 25,000 cycles
  • Illumination: Non-Illuminated
  • REACH Regulations: Unaffected
  • ECCN Classification: EAR99
