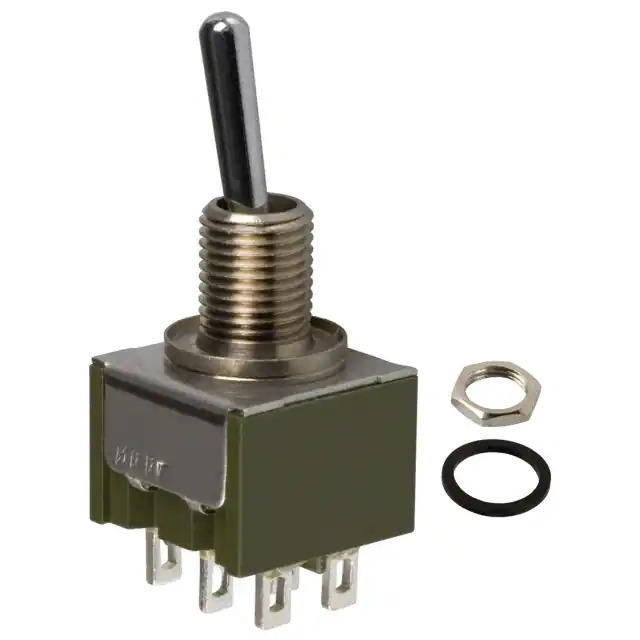

M2022SD3W01 NKK Switches
Same model may have multiple batches, images only for reference.

M2022SD3W01

Part No M2022SD3W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 6A 125V / Toggle Switch DPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Product Status Last Time Buy
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 10.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2022SD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375962-M2022SD3W01
Ultra Librarian 3D Model Ultra Librarian M2022SD3W01 CAD Model

Description

The M2022SD3W01 is a panel mount toggle switch from NKK Switches.

  • Base Product Number: M2022SD
  • Voltage Rating: 125V AC and 30V DC
  • Current Rating: 6A (AC) and 4A (DC)
  • Ingress Protection Rating: IP67
  • Circuit Configuration: DPDT
  • Switch Function: On-On
  • Terminals: Epoxy sealed
  • Mounting: Panel mount
  • Termination Style: Solder lug
  • Panel Cutout Dimensions: Circular, 6.50mm in diameter
