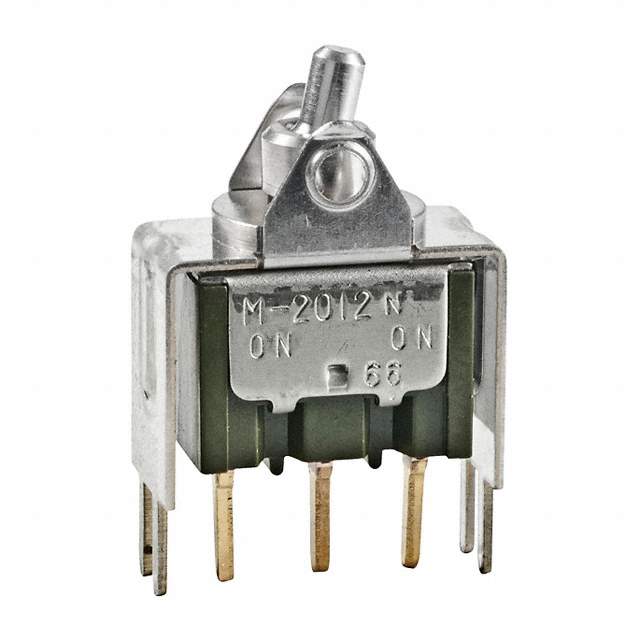

M2012TXG13 Real Image
Same model may have multiple batches, images only for reference.

M2012TXG13

Part No M2012TXG13
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 0.4VA 28V
Datasheet
M2012TXG13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 14 Weeks
Features Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole
Manufacturer NKK Switches
Series M
Package Tray
Operating Temperature Range -30°C ~ 85°C
Mounting Through Hole
Family Name M2012TX
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number M2012TXG13-RO, M2012TXG13-RO-ND, -M2012TXG13
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 880503-M2012TXG13
Ultra Librarian 3D Model Ultra Librarian M2012TXG13 CAD Model

Description

The NKK Switches M2012TXG13 is a high-quality rocker switch SPDT with a current rating of 0.4VA (AC/DC) 28V.

  • Series: M
  • Operating Temperature: -30°C to 85°C
  • Package: Tray
  • Mounting Type: Through Hole
  • Family Name: M2012TX
  • Category: Switches
  • ECCN: EAR99
  • Popularity: Medium
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 14 Weeks
  • HTSUS Code: 8536.50.9065
