Same model may have multiple batches, images only for reference.

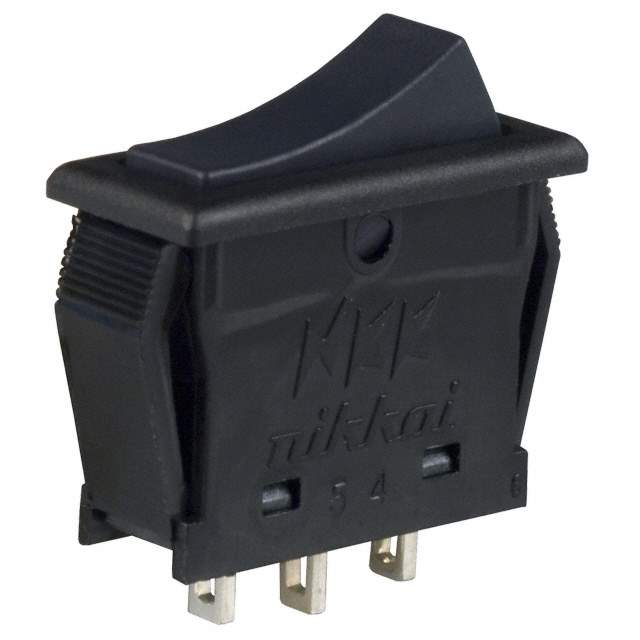

CWT12AAS1 Real Image
Same model may have multiple batches, images only for reference.

CWT12AAS1

Part No CWT12AAS1
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 6A 125V / Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr NKK Switches
Series CWT
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Solder Lug
Ingress Protection Dust Proof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 19.20mm x 6.80mm
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 50,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number CWT12AA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 360-1727
Standard Package 1
Win Source Part Number 1180057-CWT12AAS1
Ultra Librarian 3D Model Ultra Librarian CWT12AAS1 CAD Model

Description

The NKK Switches CWT12AAS1 is a rocker switch that has a circuit of SPDT and a switch function of On-On.

  • Manufacturer: NKK Switches
  • Product Name: CWT12AAS1
  • Switch Type: Rocker Switch
  • Circuit: SPDT
  • Switch Function: On-On
  • Current Rating (AC): 6A
  • Current Rating (DC): 4A
  • Operating Temperature: -25°C to 70°C
