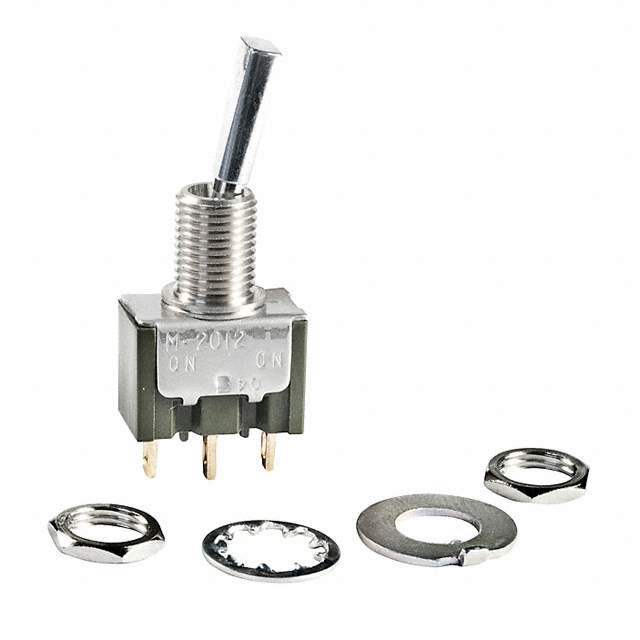

M2012ES1G01 Real Image
Same model may have multiple batches, images only for reference.

M2012ES1G01

Part No M2012ES1G01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V
Datasheet
M2012ES1G01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-On
Current Rating 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Flatted
Actuator Length 11.40mm
Illumination Non-Illuminated
Mounting Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Actuator Material Brass, Chrome Plated
Electrical Life 50,000 Cycles
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 104353-M2012ES1G01
Ultra Librarian 3D Model Ultra Librarian M2012ES1G01 CAD Model

Description

The NKK Switches 104353-M2012ES1G01 is an active single-pole double-throw (SPDT) switch suitable for various electronic devices.

  • Current Rating: 0.4VA (AC/DC)
  • Voltage Rating: 28V (AC/DC)
  • Actuator: Flatted
  • Mounting: Panel mounted
  • Panel Cutout Dimension: Circular, 6.50mm diameter
  • Bushing Thread: 1/4-40
  • Temperature Range: -30°C to 85°C
  • Termination Style: Solder lug
  • Seal: Epoxy sealed terminals
  • Status: Active production
