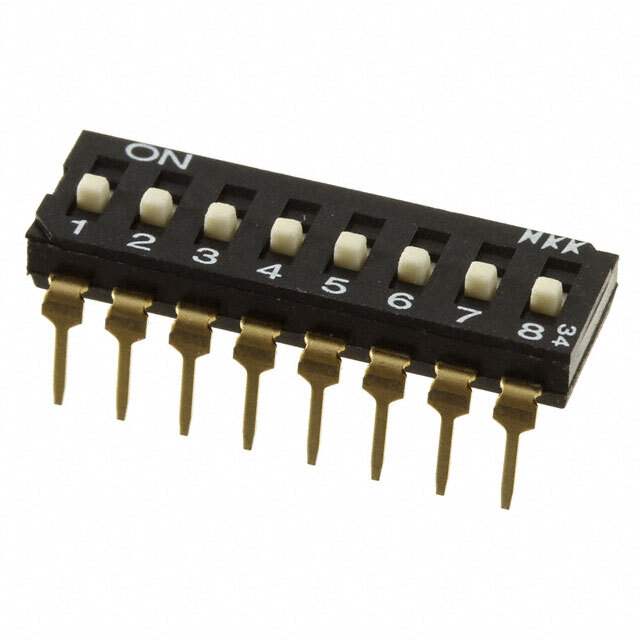

JS0108AP4-S Real Image
Same model may have multiple batches, images only for reference.

JS0108AP4-S

Part No JS0108AP4-S
Manufacturer NKK Switches
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
JS0108AP4-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 8
Current Rating 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.162" (4.11mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Body Material Polyamide (PA), Nylon, Glass Filled
Length 0.837" (21.26mm)
Temperature Range - Operating -25°C to 70°C
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Win Source Part Number 108328-JS0108AP4-S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian JS0108AP4-S CAD Model

Description

The JS0108AP4-S is an electronic component manufactured by NKK Switches.

  • Circuit: SPST
  • Switch Type: Slide
  • Positions: 8
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Body Material: Polyamide (PA), Nylon, Glass Filled
  • Actuator Level: Raised
  • Mounting Style: Through-Hole
  • It has a balance supply and demand status and is suitable for use in a wide range of applications.
