Same model may have multiple batches, images only for reference.

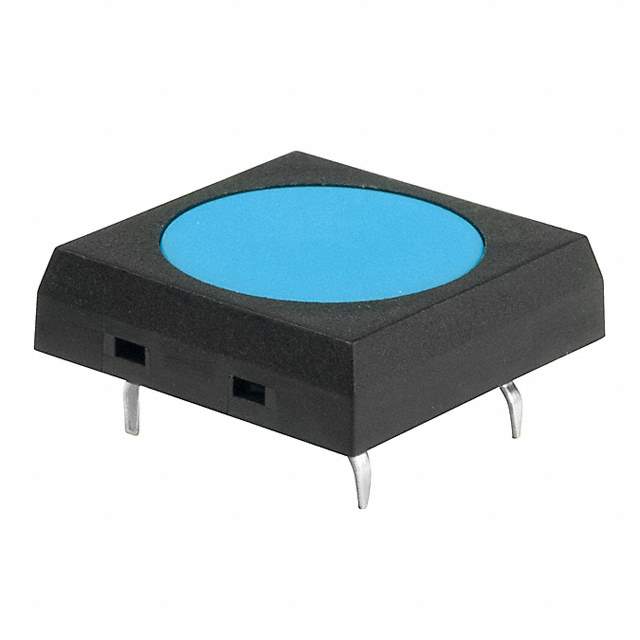

JF15SP2G Real Image
Same model may have multiple batches, images only for reference.

JF15SP2G

Part No JF15SP2G
Manufacturer NKK Switches
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Switch Tactile OFF (ON) SPST Flush Round Button PC Pins 0.05A 24VDC 500000Cycles 3N Thru-Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Series JF
Packaging Tray
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Round Button
Mounting Style Through Hole
Actuator Height off PCB, Vertical 5.08mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 17.70mm x 17.70mm
Illumination Non-Illuminated
Operating Force 300gf
Features Process Sealed
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.40mm
Mechanical Life 500,000 Cycles
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 795214-JF15SP2G
Popularity Medium
Supply and Demand Status Limited
Family Name JF
Introduction Date December 07, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian JF15SP2G CAD Model

Description

The NKK Switches JF15SP2G is a high-quality electronic component that is designed to provide superior performance and reliability.

  • Manufacturer: NKK Switches
  • Popularity: Medium
  • Switch Type: Process Sealed SPST-NO
  • Actuator Material: Polyamide (PA), Nylon
  • Circuit: Off-Mom
  • Actuator Type: Round Button
  • Switch Travel: 0.40mm
  • Contact Rating: 0.05A @ 24VDC
  • Mechanical Life: 500,000 cycles
  • Package: Tray
