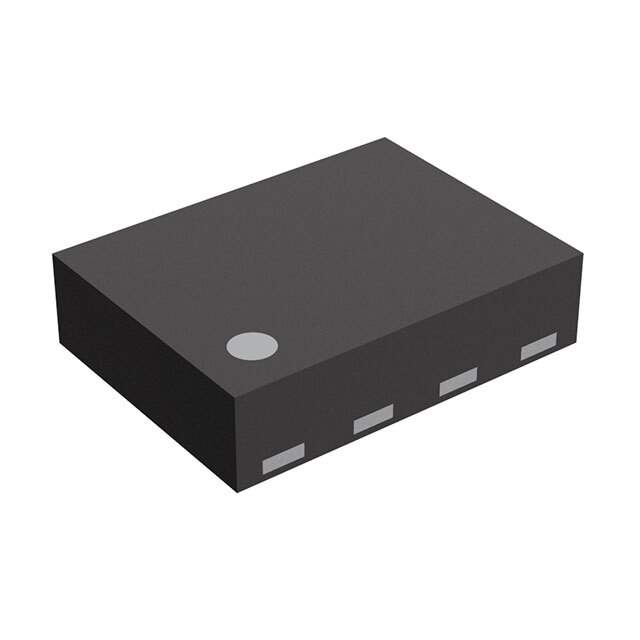

RP154L024B-E2 Real Image
Same model may have multiple batches, images only for reference.

RP154L024B-E2

Part No RP154L024B-E2
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.3V/3V 300MA 8DFN / Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA DFN1216-8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP154x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 3.3V, 3V
Voltage Dropout (Max) 0.29V @ 300mA, 0.29V @ 300mA
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 75 µA
PSRR 75dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 8-XFDFN Exposed Pad
Supplier Device Package DFN1216-8
Base Product Number RP154
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names RICRICRP154L024B-E2,2156-RP154L024B-E2
Standard Package 5,000
Win Source Part Number 1088881-RP154L024B-E2
Ultra Librarian 3D Model Ultra Librarian RP154L024B-E2 CAD Model

Description

The RP154x series from Nisshinbo Micro Devices Inc. is a set of integrated circuits (ICs) that belong to the PMIC - Voltage Regulators - Linear category. The RP154L024B-E2 model is a fixed output voltage regulator that can handle a current output of 300mA. It has two regulators and a positive output configuration. The maximum input voltage it can handle is 5.25V.

  • Package: 8-XFDFN exposed pad package
  • Standard Package: 5,000 units
  • Control Feature: enable
  • PSRR: 75dB (1kHz)
  • Protection Features: overcurrent
  • Current Quiescent: 75μA
  • Voltage Dropout: 0.29V @ 300mA
