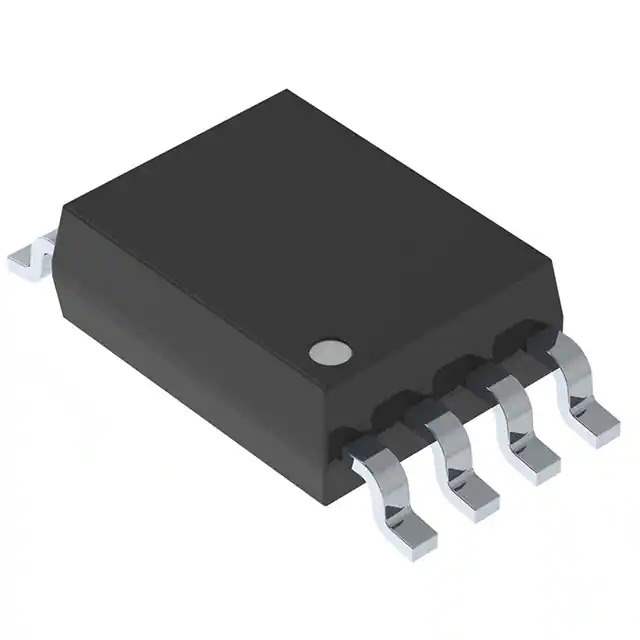

NJM072CG-TE2 Real Image
Same model may have multiple batches, images only for reference.

NJM072CG-TE2

Part No NJM072CG-TE2
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP JFET 2 CIRCUIT 8SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Active
Amplifier Type J-FET
Number of Circuits 2
Slew Rate 13V/µs
Gain Bandwidth Product 3 MHz
Current - Input Bias 30 pA
Voltage - Input Offset 3 mV
Current - Supply 1.4mA
Voltage - Supply Span (Min) 8 V
Voltage - Supply Span (Max) 36 V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Base Product Number NJM072
Standard Package 2,500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 253356-NJM072CG-TE2
Ultra Librarian 3D Model Ultra Librarian NJM072CG-TE2 CAD Model

Description

The NJM072CG-TE2 is a dual operational amplifier integrated circuit designed for instrumentation, op amps, and buffer amp applications.

  • Features: Two independent amplifiers
  • Suitable for: A wide range of audio and signal processing applications
  • Slew Rate: 13V/μs
  • Gain Bandwidth Product: 3 MHz
  • Supply Voltage: 8V to 36V
  • Temperature Range: -40°C to 105°C
  • Package: Surface mount package (8-SOIC)
  • Packaging: Tape and reel, with a standard package of 2,500 pieces
  • Input Bias Current: 30pA
  • Input Offset Voltage: 3mV
  • Status: Active product from Nisshinbo Micro Devices Inc.
