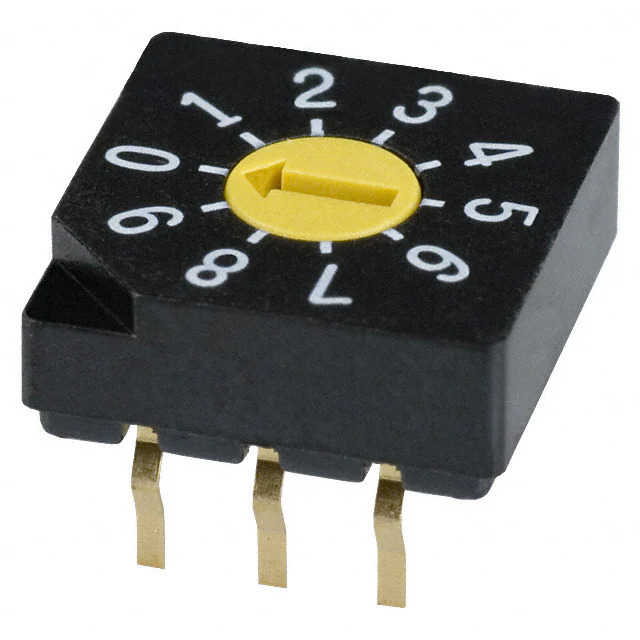

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series SD-2000
Package Bulk
Product Status Active
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.154" (3.90mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.394" (10.00mm)
Mechanical Life -
Electrical Life 20,000 Steps
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376110-SD-2010
Ultra Librarian 3D Model Ultra Librarian SD-2010 CAD Model

Description

The Nidec Components Corporation SD-2010 is a DIP switch with 10 positions.

  • Temperature Range: -40°C to 85°C
  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Actuator Type: Rotary
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Copper alloy
  • Mechanical Life: 20,000 steps
  • Electrical Life: 20,000 cycles
  • Mounting: Through-hole
  • Termination: PC pins
  • Body Material: Polyphenylene sulfide (PPS)
  • Product Status: Active
  • Series: SD-2000
