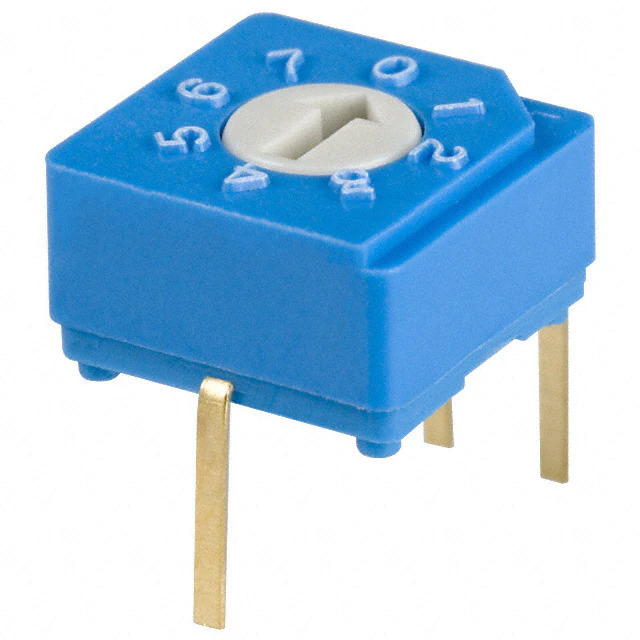

S-8010 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

S-8010

Part No S-8010
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH ROTARY DIP OCTAL 100MA 5V
Datasheet
S-8010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series S-8000
Package Bulk
Product Status Active
Circuit Octal
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.154" (3.90mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features -
Temperature Range - Operating -25°C ~ 70°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.283" (7.20mm)
Mechanical Life -
Electrical Life 10,000 Steps
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376115-S-8010
Ultra Librarian 3D Model Ultra Librarian S-8010 CAD Model

Description

The Nidec Components Corporation S-8010 is an 8-position DIP switch with a current rating of 100mA and a voltage rating of 5VDC.

  • Current Rating: 100mA
  • Voltage Rating: 5VDC
  • Contact Finish: Gold
  • Pitch: 0.100" (2.54mm)
  • Circuit: Octal
  • Mounting: Through-Hole
  • Termination: PC Pins
  • Status: Active
  • Mechanical Life: 10,000 steps
  • Contact Material: Copper Alloy
  • Body Material: Polybutylene Terephthalate (PBT)
