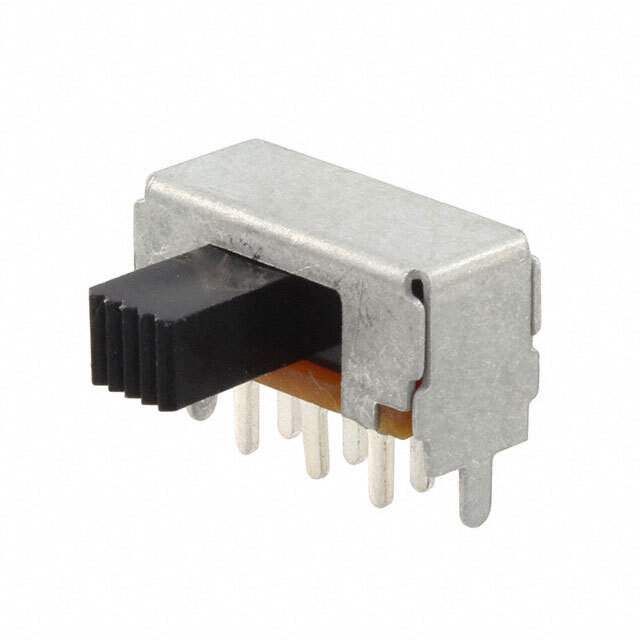

MFS201N-16-Z Nidec Components Corporation
Same model may have multiple batches, images only for reference.

MFS201N-16-Z

Part No MFS201N-16-Z
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 1A 125V
Datasheet
MFS201N-16-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204006-MFS201N-16-Z
Manufacturer Nidec Components Corporation
Category Switches- Slide Switches
Series MFS
Package Bulk
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 125 V
Ultra Librarian 3D Model Ultra Librarian MFS201N-16-Z CAD Model

Description

●Initial contact resistance Measured at 1.5mA 200 µVAC 1kHz
●Dilectric strength Measurement at 500 VAC.
●Insulation Resistance Measured at 500VDC
●Operating temperature range −10℃〜＋70℃
