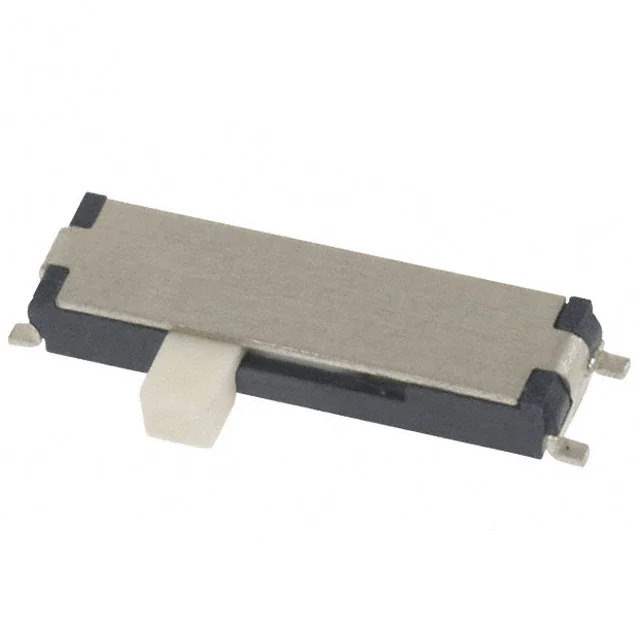

The CUS-13TB is a slide switch from Nidec Copal Electronics.

• It is part of the CUS series and features a gull wing termination style.
• The switch has a contact finish of gold and comes in a tape & reel package.
• The contact material is copper alloy and the actuator is made of polyamide (PA) and nylon.
• With a voltage rating of 4VDC, this switch is suitable for low-power applications.
• The CUS-13TB is a SP3T switch with non-shorting contact timing.
• It has an actuator type of standard and an actuator length of 1.50mm.
• The switch travel is 1.50mm and it has an electrical life of 10,000 cycles.
• The operating force is 153/204gf and the current rating is 300mA (DC).
• This slide switch is surface mountable and can withstand temperatures from -20°C to 70°C.
• It is commonly used in consumer electronics and industrial applications.
