Same model may have multiple batches, images only for reference.

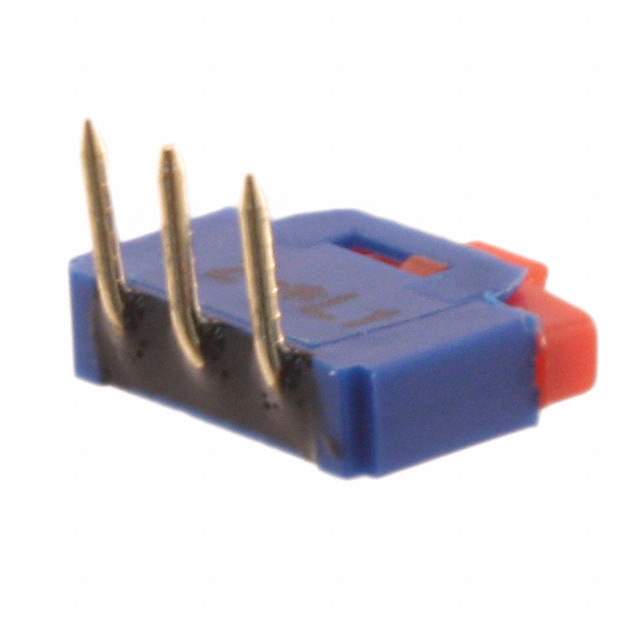

NK236WH Real Image
Same model may have multiple batches, images only for reference.

NK236WH

Part No NK236WH
Manufacturer Apem Inc.
Catalog Slide Switches
Description SWITCH SLIDE SPDT 500MA 12V / Slide Switch SPDT Through Hole, Right Angle
Datasheet
NK236WH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr APEM Inc.
Series NK
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 1.40mm
Contact Material Nickel
Contact Finish Gold
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Sealed - Flux Protection
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA66) , Nylon 6/6, Glass Filled
Switch Travel 1.60mm
Electrical Life 2,000 Cycles
Base Product Number NK236W
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
California Prop 65 Warning Information
Win Source Part Number 1349041-NK236WH
Ultra Librarian 3D Model Ultra Librarian NK236WH CAD Model

Description

The NK NK236WH is a SPDT slide switch from the NK series.

  • Voltage Rating: 12V DC
  • Current Rating: 500mA (DC)
  • Mounting Type: Through-hole, right angle
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Sealing: Flux Protection
  • Actuator Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Operating Temperature: -40°C to 85°C
