Same model may have multiple batches, images only for reference.

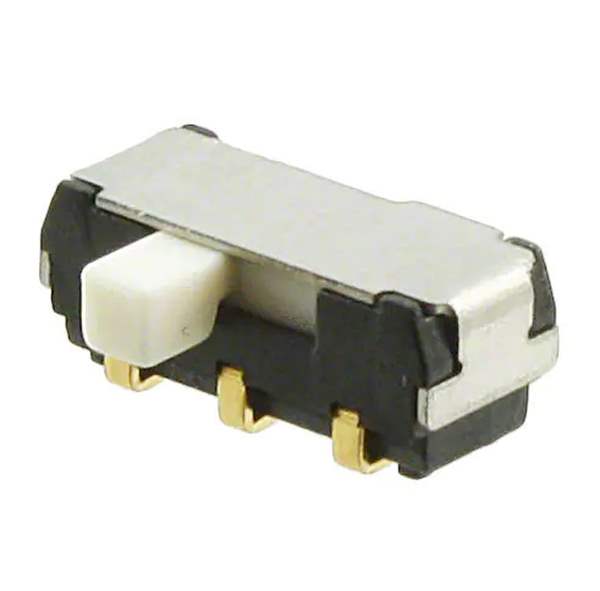

CL-SB-22A-12T Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-SB-22A-12T

Part No CL-SB-22A-12T
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 200MA 12V
Datasheet
CL-SB-22A-12T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SB
Package Tape & Reel
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper
Contact Finish Gold
Mounting Type Surface Mount, Right Angle
Termination Style J Lead
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 153gf
Base Product Number CL-SB-22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376227-CL-SB-22A-12T
Ultra Librarian 3D Model Ultra Librarian CL-SB-22A-12T CAD Model

Description

The 1376227-CL-SB-22A-12T is a surface mount slide switch from Nidec Components Corporation.

  • Operating Temperature: -40°C to 85°C
  • Current Rating: 200mA (DC)
  • Circuit: DPDT
  • Switch Function: On-On
  • Voltage Rating: 12VDC
  • Actuator Type: Standard
  • Mounting Orientation: Surface Mount, Right-Angle
  • Mechanical Life: 10,000 cycles
  • Operating Force: 153gf
