Same model may have multiple batches, images only for reference.

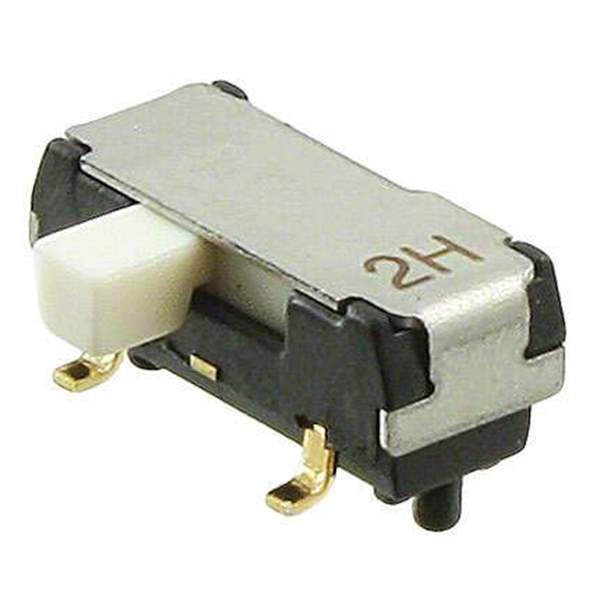

CL-SB-12B-12T Real Image
Same model may have multiple batches, images only for reference.

CL-SB-12B-12T

Part No CL-SB-12B-12T
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 200MA 12V
Datasheet
CL-SB-12B-12T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 10 Weeks
Features Slide Switch SPDT Surface Mount, Right Angle
Manufacturer Nidec Copal Electronics
Series CL-SB
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name CL-SB-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Part Number CLSB12B12T, 563-1321-2, 563-1321-1, 563-1321-6
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844159-CL-SB-12B-12T
Ultra Librarian 3D Model Ultra Librarian CL-SB-12B-12T CAD Model

Description

The Nidec Copal Electronics CL-SB-12B-12T is a slide switch that is commonly used in electronic circuits.

  • Manufacturer: Nidec Copal Electronics
  • Component: Slide Switch
  • Mounting Type: Surface Mount
  • Configuration: SPDT
  • Operating Temperature: -40°C to 85°C
