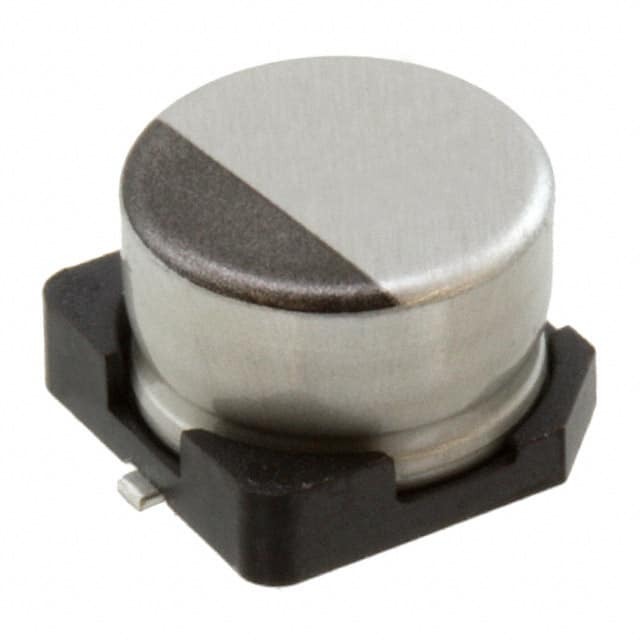

UZS1H100MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UZS1H100MCL1GB

Part No UZS1H100MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 50V SMD / 10 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UZS1H100MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UZS
Package Tape & Reel
Product Status Last Time Buy
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 33 mA @ 120 Hz
Ripple Current @ High Frequency 49.5 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.181" (4.60mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360209-UZS1H100MCL1GB
Ultra Librarian 3D Model Ultra Librarian UZS1H100MCL1GB CAD Model

Description

The UZS1H100MCL1GB is a radial can surface mount aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 10 µF
  • Voltage Rating: 50 V
  • Application: General-purpose
  • Operating Temperature Range: -40°C to 85°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 33 mA @ 120 Hz
  • Ripple Current (High Frequency): 49.5 mA @ 10 kHz
  • Lifetime: 2000 hours @ 85°C
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260" x 0.260"
  • Size: 0.248" in diameter and 0.181" in height
  • REACH: Unaffected
  • ECCN: EAR99
  • Product Status: Last time buy
