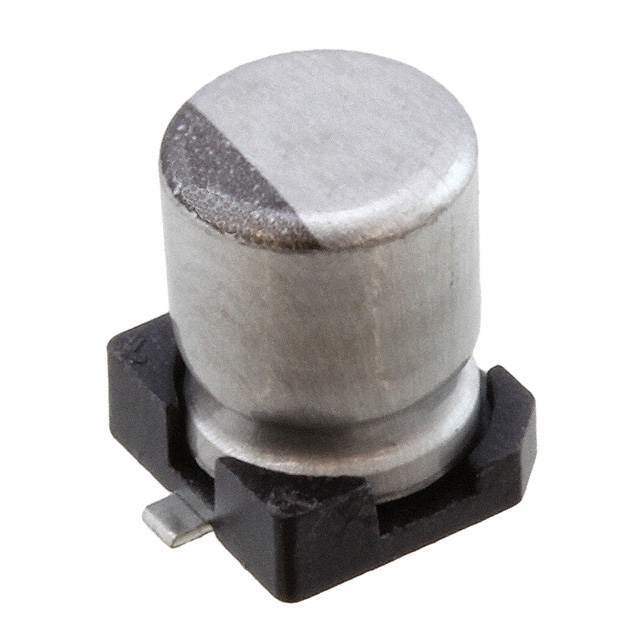

UWZ1H010MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWZ1H010MCL1GB

Part No UWZ1H010MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1UF 20% 50V SMD
Datasheet
UWZ1H010MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWZ
Package Tape & Reel
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications High Temperature Reflow
Ripple Current @ Low Frequency 6.3 mA @ 120 Hz
Ripple Current @ High Frequency 9.45 mA @ 10 kHz
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 853451-UWZ1H010MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWZ1H010MCL1GB CAD Model

Description

The UWZ1H010MCL1GB is an aluminum electrolytic capacitor from the UWZ series manufactured by Nichicon.

  • Capacitance: 1µF
  • Voltage Rating: 50V
  • Application: High-Temperature Reflow
  • Mounting Type: Surface Mount
  • Diameter: 0.157" (4.00mm)
  • Seated Height: 0.213" (5.40mm)
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Standard Package: 2,000 pcs
