Same model may have multiple batches, images only for reference.

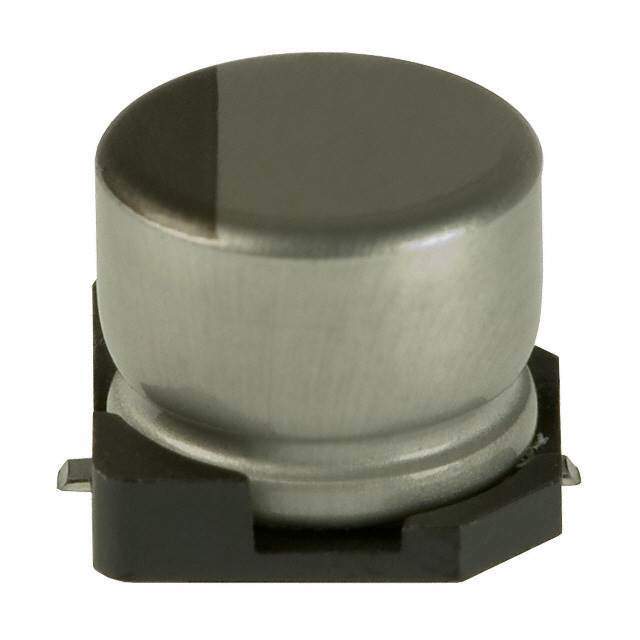

UWX1E220MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX1E220MCL1GB

Part No UWX1E220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 25V SMD / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 42 mA @ 120 Hz
Ripple Current @ High Frequency 63 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-2109-6,493-2109-2,493-2109-1
Standard Package 1,000
Win Source Part Number 1330557-UWX1E220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1E220MCL1GB CAD Model

Description

The Nichicon 1330557-UWX1E220MCL1GB is an aluminum electrolytic capacitor that has a capacitance of 22 µF and a voltage rating of 25 V.

  • Capacitance: 22 µF
  • Voltage Rating: 25 V
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.213" (5.40mm)
  • Polarization: Polarized
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Case/Package: Radial, Can - SMD
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • Operating Temperature: -40°C to 85°C
