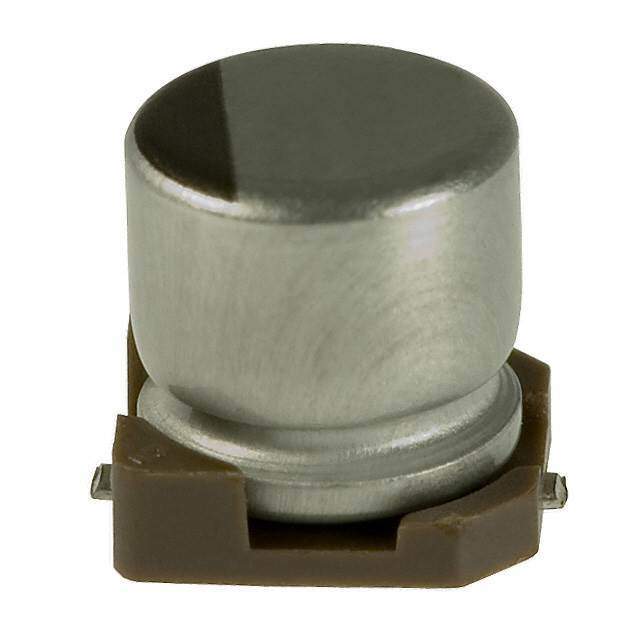

UWX0J330MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX0J330MCL1GB

Part No UWX0J330MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 6.3V SMD / 33 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Not For New Designs
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 37 mA @ 120 Hz
Ripple Current @ High Frequency 55.5 mA @ 10 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2085-2,493-2085-1,493-2085-6
Standard Package 1,000
Win Source Part Number 1178583-UWX0J330MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX0J330MCL1GB CAD Model

Description

The UWX0J330MCL1GB is an aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 33 µF
  • Tolerance: ±20%
  • Polarization: Polarized
  • Voltage Rating: 6.3V
  • Ripple Current: 37 mA @ 120 Hz, 55.5 mA @ 10 kHz
  • Package: Radial, Can - SMD
  • Application: General Purpose
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Height: 0.213" (5.40mm)
