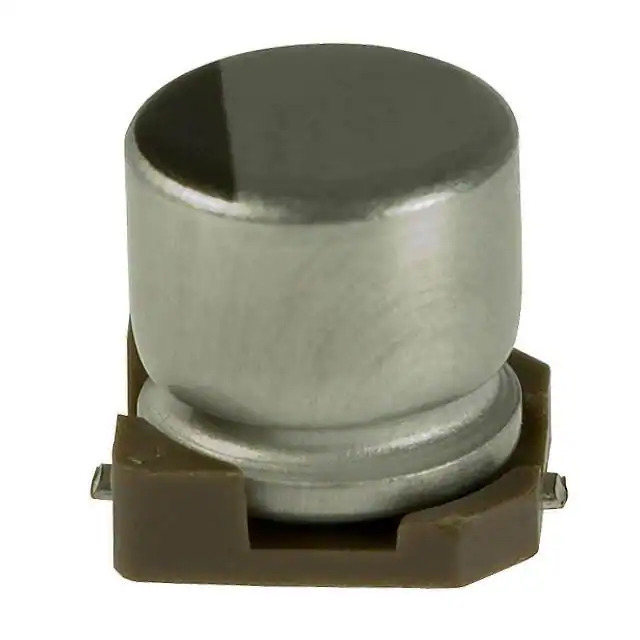

Same model may have multiple batches, images only for reference.
UWX0G101MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWX0G101MCL1GB

Part No UWX0G101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 4V SMD / 100 µF 4 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 4 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 56 mA @ 120 Hz
Ripple Current @ High Frequency 84 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360263-UWX0G101MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX0G101MCL1GB CAD Model

Description

The UWX0G101MCL1GB is an aluminum electrolytic capacitor from Nichicon's UWX series.

  • Series: UWX
  • Capacitance: 100 μF
  • Voltage Rating: 4 V
  • Applications: General Purpose
  • Ripple Current: 56 mA @ 120 Hz, 84 mA @ 10 kHz
  • Packaging: Tape & Reel (TR)
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.197" Dia (5.00mm)
  • Height - Seated (Max): 0.213" (5.40mm)
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Lifetime @ Temp.: 2000 Hrs @ 85°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Status: Last Time Buy
