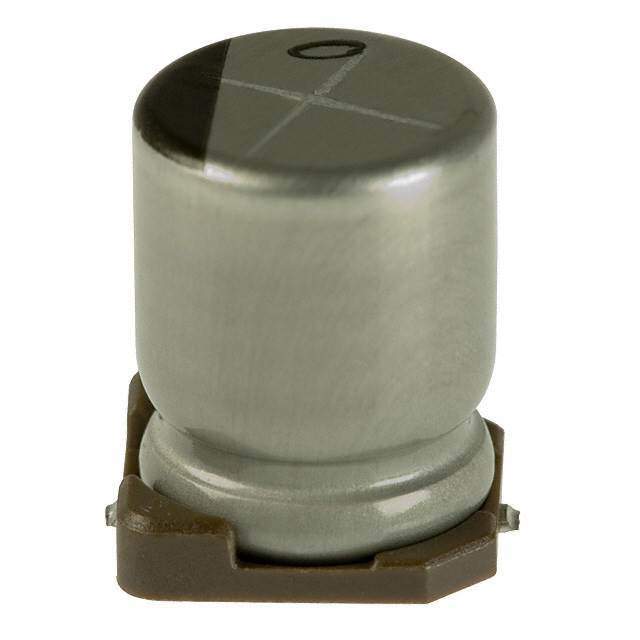

Same model may have multiple batches, images only for reference.

UWT1C331MNL1GS

Name: UWT1C331MNL1GS
Brand: Nichicon
SKU: 1339960
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UWT1C331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 16V SMD / 330 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	16 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	195 mA @ 120 Hz
Ripple Current @ High Frequency	292.5 mA @ 10 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339960-UWT1C331MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT1C331MNL1GS CAD Model

Description

The 1339960-UWT1C331MNL1GS aluminum electrolytic capacitor is a high-quality component that offers a capacitance of 330 µF and a voltage rating of 16 V.

Capacitance: 330 µF
Voltage Rating: 16 V
Tolerance: ±20%
Operating Temperature: -55°C to 105°C
Package: Radial, can - SMD
Suitable for: General-purpose uses
Ripple Current: 195 mA @ 120 Hz and 292.5 mA @ 10 kHz
Package/Case: Tape & reel
Standard Package: 500
Manufacturer: Nichicon
