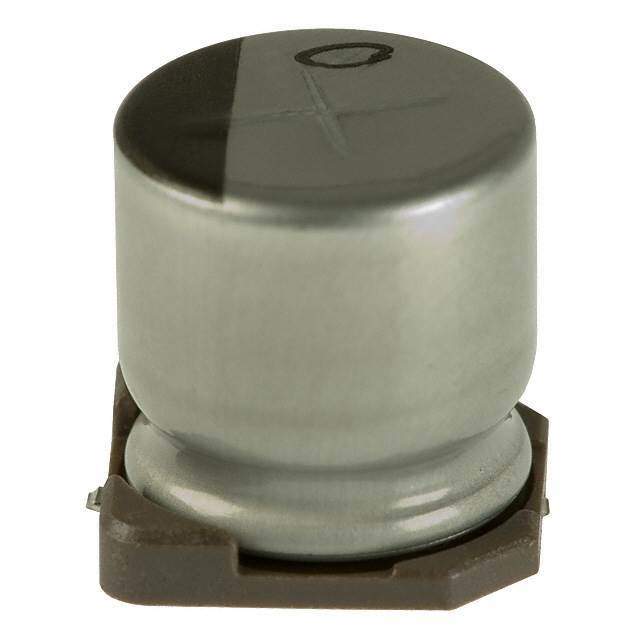

Same model may have multiple batches, images only for reference.

UWT0G152MNL1GS

Name: UWT0G152MNL1GS
Brand: Nichicon
SKU: 1337051
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UWT0G152MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 4V SMD / 1500 µF 4 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWT
Package	Tape & Reel
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	4 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	310 mA @ 120 Hz
Ripple Current @ High Frequency	465 mA @ 10 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337051-UWT0G152MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UWT0G152MNL1GS CAD Model

Description

The UWT0G152MNL1GS is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: UWT
Applications: General Purpose
Capacitance: 1500 µF
Voltage - Rated: 4V
Operating Temperature: -55°C ~ 105°C
Mounting Type: Surface Mount, Radial, Can - SMD
Tolerance: ±20%
Ripple Current @ Low Frequency: 310 mA @ 120 Hz
Ripple Current @ High Frequency: 465 mA @ 10 kHz
Height - Seated (Max): 0.394" (10.00mm)
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Packaging: Tape & Reel (TR)
Standard Package: 500
