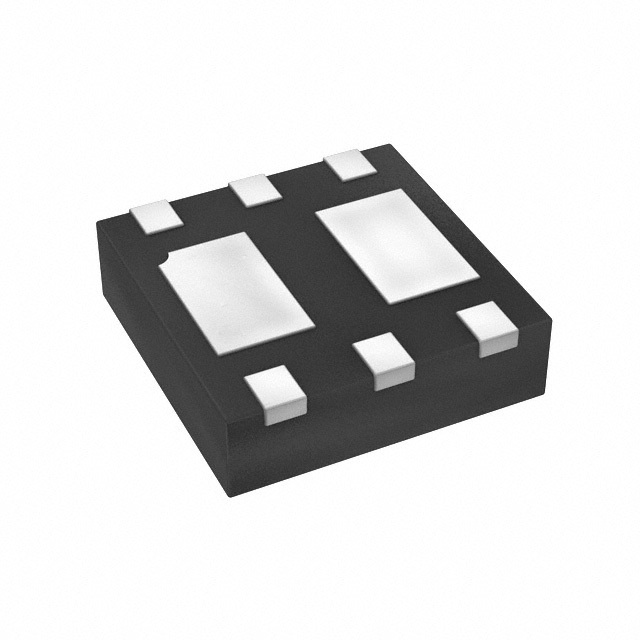

Same model may have multiple batches, images only for reference.
DMC2025UFDBQ-7 Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DMC2025UFDBQ-7

Part No DMC2025UFDBQ-7
Manufacturer Diodes Incorporated
Catalog FETs - Arrays
Description MOSFET N/P-CH 20V 6A 6UDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsFET, MOSFET Arrays
Manufacturer Diodes Incorporated
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration N and P-Channel Complementary
Drain to Source Voltage (Vdss) 20V
Current - Continuous Drain (Id) @ 25°C 6A (Ta), 3.5A (Ta)
Rds On (Max) @ Id, Vgs 25mOhm @ 4A, 4.5V, 75mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id 1V @ 250μA, 1.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs 12.3nC @ 10V, 15nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds 486pF @ 10V, 642pF @ 10V
Power - Max 700mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 6-UDFN Exposed Pad
Supplier Device Package U-DFN2020-6 (Type B)
Base Product Number DMC2025
Ultra Librarian 3D Model Ultra Librarian DMC2025UFDBQ-7 CAD Model
