Same model may have multiple batches, images only for reference.

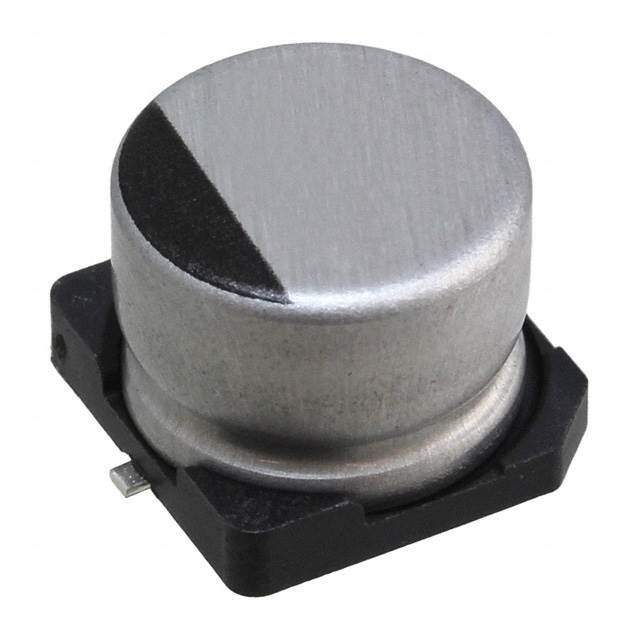

UWF1C101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWF1C101MCL1GS

Part No UWF1C101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWF
Package Tape & Reel
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 75 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 800 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWF1C101MCL1GS-ND,493-9710-6,493-9710-1,493-9710-2
Standard Package 1,000
Win Source Part Number 994820-UWF1C101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWF1C101MCL1GS CAD Model

Description

The Nichicon UWF1C101MCL1GS is an aluminum electrolytic capacitor suitable for general-purpose applications.

  • Manufacturer: Nichicon
  • Capacitance: 100 µF
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 16 V
  • Impedance: 800 mOhms
  • Ripple Current: 75 mA @ 120 Hz, 150 mA @ 100 kHz
  • Mounting Type: SMD (SMT)
  • Package/Case: Radial, Can - SMD
  • Dimension: 0.315" Dia (8.00mm)
  • Height: 0.256" (6.50mm)
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 1000 Hrs @ 105°C
  • Standard Package: 1,000
