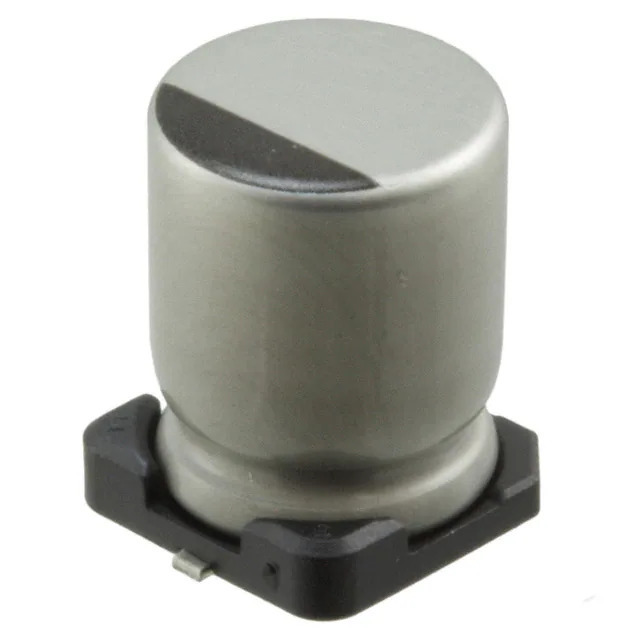

UWD1V151MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWD1V151MCL1GS

Part No UWD1V151MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 150UF 20% 35V SMD / 150 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1V151MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Product Status Active
Capacitance 150 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 225 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Impedance 170 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360359-UWD1V151MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1V151MCL1GS CAD Model

Description

The 1360359-UWD1V151MCL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Series: UWD
  • Capacitance: 150µF
  • Operating Temperature: -55°C to 105°C
  • Mounting Type: Surface Mountable
  • Package: Radial, Can - SMD
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ 105°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 225mA @ 120Hz
  • Ripple Current (High Frequency): 450mA @ 100kHz
  • Size: 0.315" Dia (8.00mm)
  • Maximum Seated Height: 0.394" (10.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
