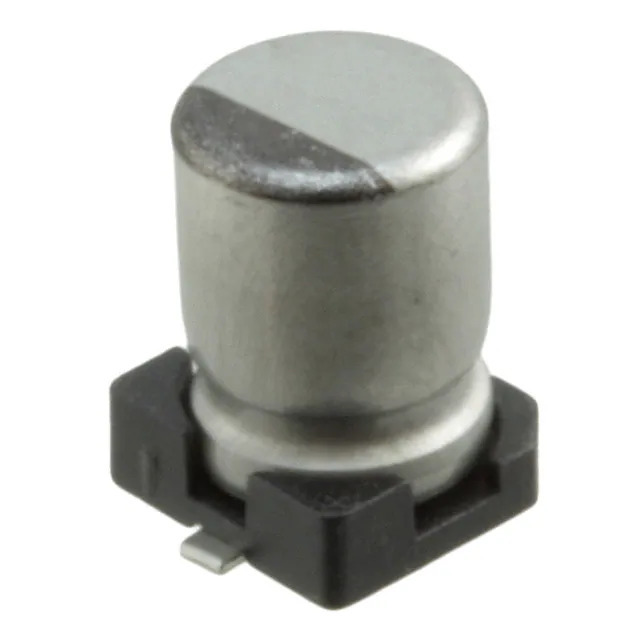

Same model may have multiple batches, images only for reference.

UWD1H010MCL1GS

Name: UWD1H010MCL1GS
Brand: Nichicon
SKU: 1360148
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWD1H010MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1UF 20% 50V SMD / 1 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UWD1H010MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWD
Package	Tape & Reel
Product Status	Active
Capacitance	1 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	15 mA @ 120 Hz
Ripple Current @ High Frequency	30 mA @ 100 kHz
Impedance	5 Ohms
Lead Spacing	-
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360148-UWD1H010MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UWD1H010MCL1GS CAD Model

Alternative Products

Description

The UWD1H010MCL1GS is a radial aluminum electrolytic capacitor from Nichicon.

Series: UWD
Capacitance: 1 µF
Voltage Rating: 50 V
Tolerance: ±20%
Application: General Purpose
Ripple Current (Low Frequency): 15 mA @ 120 Hz
Ripple Current (High Frequency): 30 mA @ 100 kHz
Diameter: 0.157 inches (4.00 mm)
Seated Height: 0.240 inches (6.10 mm)
Mounting Type: Surface Mount
Surface Mount Land Size (Length): 0.169 inches (4.30 mm)
Surface Mount Land Size (Width): 0.169 inches (4.30 mm)
REACH: Unaffected
Product Status: Active
