Same model may have multiple batches, images only for reference.

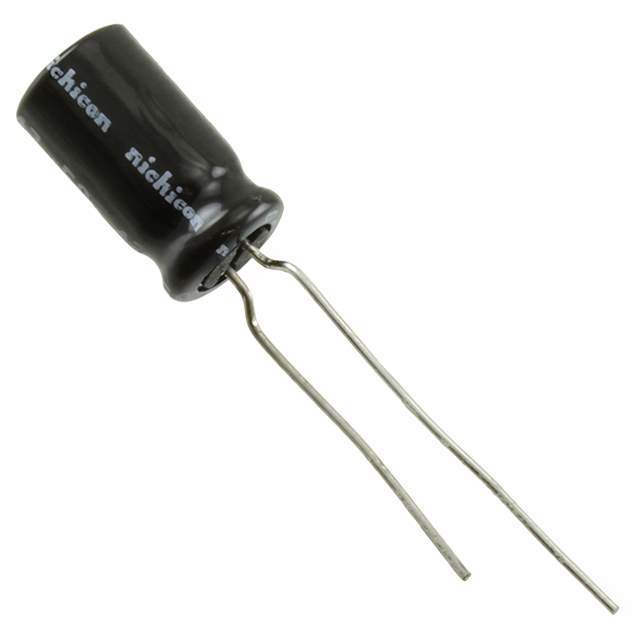

UVZ2A220MED1TD Real Image
Same model may have multiple batches, images only for reference.

UVZ2A220MED1TD

Part No UVZ2A220MED1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 100V RADIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 93 mA @ 120 Hz
Ripple Current @ High Frequency 186 mA @ 10 kHz
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-13502-3,493-13502-1
Standard Package 2,000
Win Source Part Number 987305-UVZ2A220MED1TD
Ultra Librarian 3D Model Ultra Librarian UVZ2A220MED1TD CAD Model

Description

The Nichicon electronic component is an aluminum electrolytic capacitor that has a capacitance of 22 μF and a tolerance of ±20%.

  • Capacitance: 22 μF
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Win Source Part Number: 987305-UVZ2A220MED1TD
  • Supply and Demand Status: Shortage
  • Product Status: Not for New Designs
  • Ripple Current: 93 mA @ 120 Hz, 186 mA @ 10 kHz
