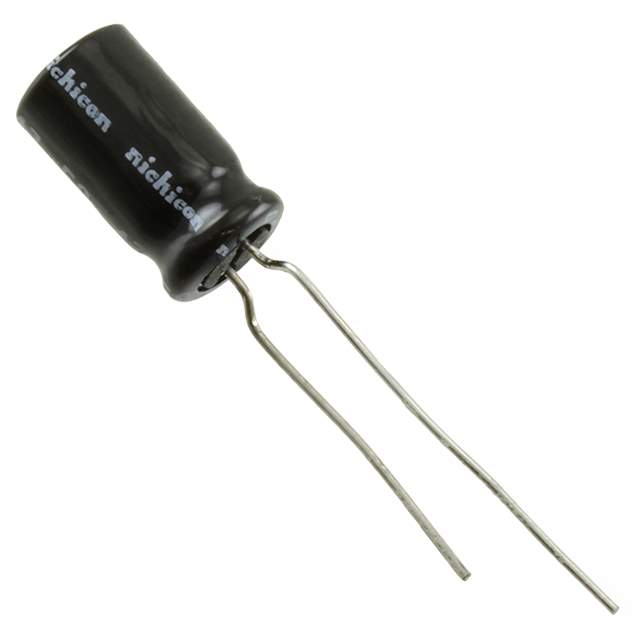

Same model may have multiple batches, images only for reference.

UVZ1V101MED

Name: UVZ1V101MED
Brand: Nichicon
SKU: 1103563
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

Part No	UVZ1V101MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVZ
Package	Bulk
Product Status	Not For New Designs
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	150 mA @ 120 Hz
Ripple Current @ High Frequency	225 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1318
Standard Package	4,000
Win Source Part Number	1103563-UVZ1V101MED
Ultra Librarian 3D Model	Ultra Librarian UVZ1V101MED CAD Model

Description

The Nichicon UVZ1V101MED is a capacitor with a capacitance of 100 µF and a voltage rating of 35 V. Nichicon UVZ1V101MED has a capacitance of 100 µF.

Capacitance: 100 µF
Voltage Rating: 35 V
Tolerance: ±20%
ECCN: EAR99
HTSUS: 8532.22.0020
Ripple Current at Low Frequency: 150 mA @ 120 Hz
Ripple Current at High Frequency: 225 mA @ 10 kHz
