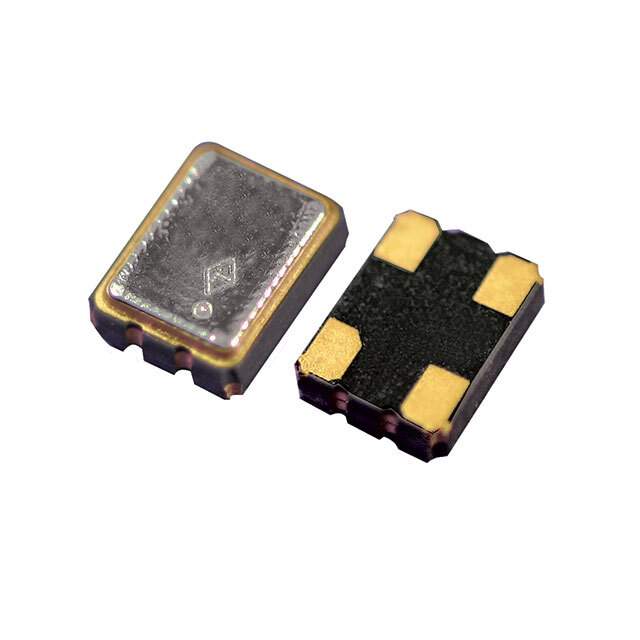

OXETDLJANF-20.000000 Real Image
Same model may have multiple batches, images only for reference.

OXETDLJANF-20.000000

Part No OXETDLJANF-20.000000
Manufacturer Taitien
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
OXETDLJANF-20.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Taitien
Series OX
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 10mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 1349887-OXETDLJANF-20.000000
Ultra Librarian 3D Model Ultra Librarian OXETDLJANF-20.000000 CAD Model

Description

The Taitien OX series XO (Standard) crystal oscillator with Win Source Part Number 1349887-OXETDLJANF-20.000000 is a surface mount package that measures 0.126" L x 0.098" W (3.20mm x 2.50mm).

  • Height: 0.043" (1.10mm)
  • Frequency: 20 MHz
  • Frequency Stability: ±25ppm
  • Output: CMOS
  • Current Supply: 10mA
  • Function: Enable/Disable
