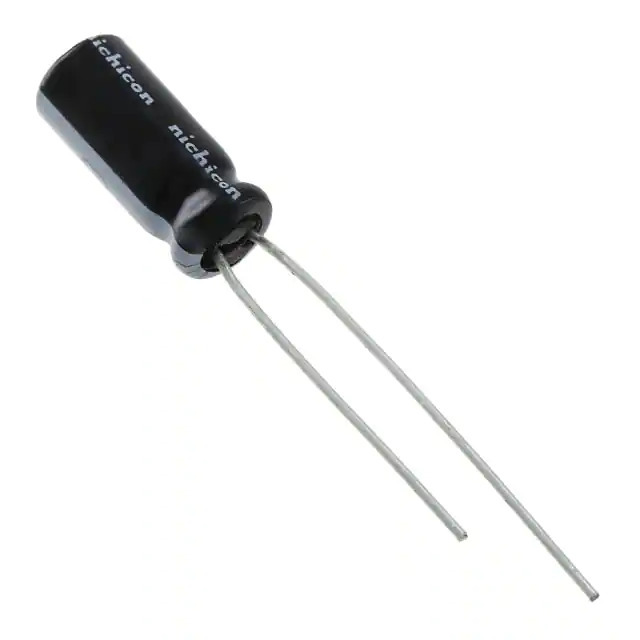

Same model may have multiple batches, images only for reference.

UVZ1C100MDD1TA

Name: UVZ1C100MDD1TA
Brand: Nichicon
SKU: 1357625
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UVZ1C100MDD1TA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 16V RADIAL / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UVZ1C100MDD1TA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVZ
Package	Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	35 mA @ 120 Hz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357625-UVZ1C100MDD1TA
Ultra Librarian 3D Model	Ultra Librarian UVZ1C100MDD1TA CAD Model

Description

The UVZ1C100MDD1TA is an aluminum electrolytic capacitor from Nichicon's UVZ series.

Series: UVZ
Capacitance: 10 μF
Tolerance: ±20%
Voltage - Rated: 16 V
Application: General Purpose
Ripple Current @ Low Frequency: 35 mA @ 120 Hz
Lead Spacing: 0.197"
Size / Dimension: 0.197" Dia
Mounting Type: Through Hole
Package / Case: Radial, Can
Height - Seated (Max): 0.492"
Packaging: Tape & Box (TB)
REACH: Unaffected
ECCN: EAR99
