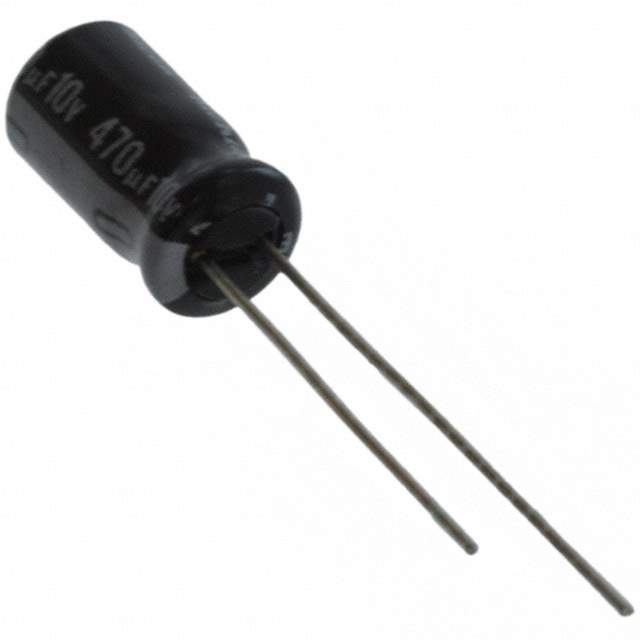

Same model may have multiple batches, images only for reference.

UVY1A471MED

Name: UVY1A471MED
Brand: Nichicon
SKU: 1336730
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVY1A471MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 10V RADIAL / 470 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UVY1A471MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVY
Package	Bulk
Product Status	Obsolete
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	250 mA @ 120 Hz
Ripple Current @ High Frequency	375 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	UVY1A
Standard Package	4,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336730-UVY1A471MED
Ultra Librarian 3D Model	Ultra Librarian UVY1A471MED CAD Model

Description

This aluminum electrolytic capacitor is a part of the UVY series from Nichicon.

Capacitance: 470 µF
Voltage Rating: 10 V
Tolerance: ±20%
Ripple Current: 250 mA @ 120 Hz and 375 mA @ 10 kHz
Mounting Type: Through-hole
Package/Case: Radial and can
Size/Dimension: 0.248” Dia (6.30mm)
Seated Height: 0.492” (12.50mm)
Application: General-purpose
Lifetime: 1000 hours @ 105°C
Packaging: Bulk
Standard Package: 4,000
