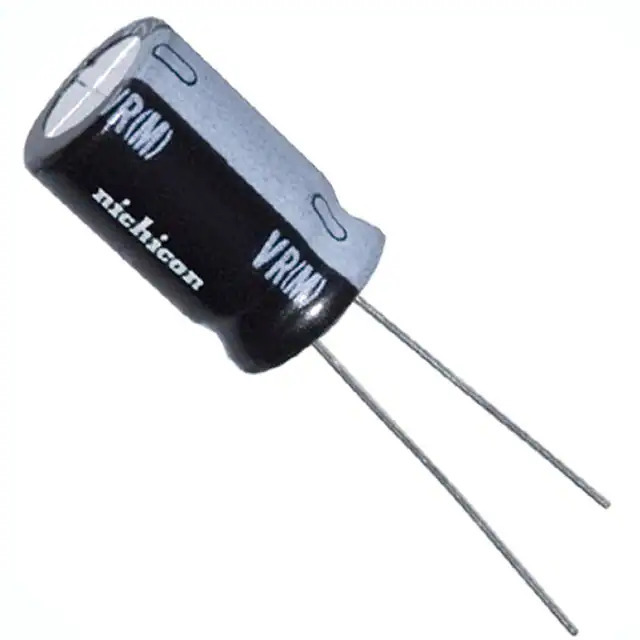

Same model may have multiple batches, images only for reference.

UVR2W4R7MPD

Name: UVR2W4R7MPD
Brand: Nichicon
SKU: 1358114
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR2W4R7MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 450V RADIAL / 4.7 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	55 mA @ 120 Hz
Ripple Current @ High Frequency	88 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358114-UVR2W4R7MPD
Ultra Librarian 3D Model	Ultra Librarian UVR2W4R7MPD CAD Model

Description

The UVR2W4R7MPD is an aluminum electrolytic capacitor from Nichicon's UVR series.

Series: UVR
Application: General Purpose
Capacitance: 4.7 μF
Tolerance: ±20%
Voltage Rating: 450 V
Ripple Current: 55 mA @ 120 Hz and 88 mA @ 10 kHz
Size: 0.394" diameter (10.00mm)
Height: 0.866" (22.00mm)
Mounting: Through-Hole
Lifetime: 2000 hours @ 85°C
Package: Radial, Can
Packaging: Bulk
Status: Not Recommended for New Designs
