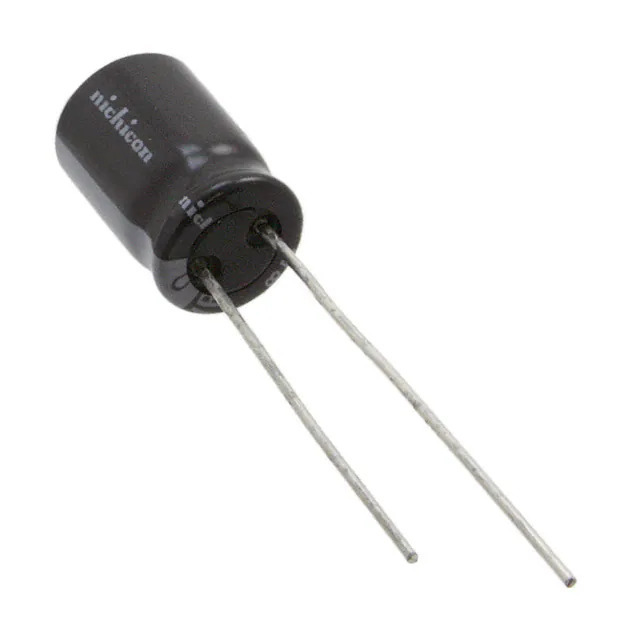

Same model may have multiple batches, images only for reference.

UVR2C100MPD

Name: UVR2C100MPD
Brand: Nichicon
SKU: 1357645
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR2C100MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 160V RADIAL / 10 µF 160 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	80 mA @ 120 Hz
Ripple Current @ High Frequency	128 mA @ 10 kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357645-UVR2C100MPD
Ultra Librarian 3D Model	Ultra Librarian UVR2C100MPD CAD Model

Description

The UVR2C100MPD is an aluminum electrolytic capacitor from Nichicon.

Manufacturer: Nichicon
Product: UVR2C100MPD
Capacitance: 10 μF
Voltage Rating: 160 V
Application: General Purpose
Temperature Range: -40°C to 85°C
Tolerance: ±20%
Ripple Current @ Low Frequency: 80 mA @ 120 Hz
Ripple Current @ High Frequency: 128 mA @ 10 kHz
Size / Dimension: 0.315" Dia (8.00mm)
Height: 0.512" (13.00mm)
Mounting Type: Through Hole
Package / Case: Radial, Can
Life @ Temp.: 2000 Hours @ 85°C
Polarization: Yes
Series: UVR
Product Status: Not For New Designs
