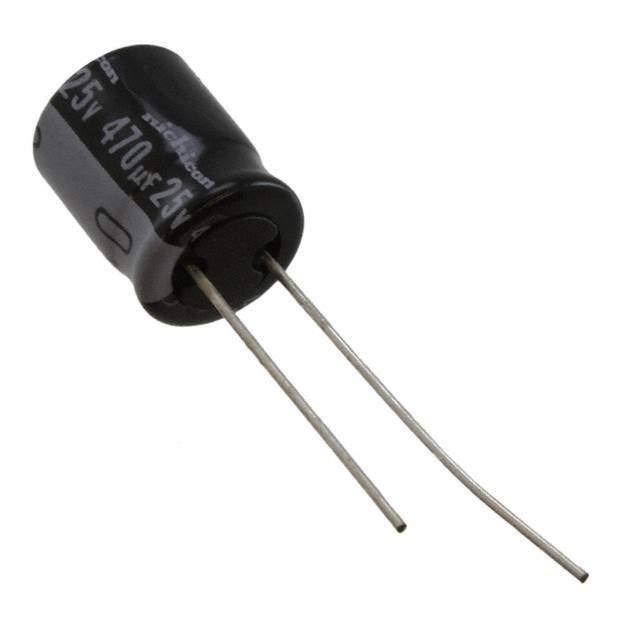

UVR1E471MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UVR1E471MPD1TD

Part No UVR1E471MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVR
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 550 mA @ 120 Hz
Ripple Current @ High Frequency 825 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 1174356-UVR1E471MPD1TD
Ultra Librarian 3D Model Ultra Librarian UVR1E471MPD1TD CAD Model

Description

This aluminum electrolytic capacitor is manufactured by Nichicon and has a Win Source Part Number of 1174356-UVR1E471MPD1TD.

  • Series: UVR
  • Packaging: Tape & Box
  • Capacitance: 470 µF
  • Voltage Rating: 25V
  • Polarization: Polarized
  • Tolerance: ±20%
  • ESR: Not Specified
  • Operating Temperature: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Ripple Current (Low Frequency): 550mA
  • Ripple Current (High Frequency): 825mA
  • Mounting Type: Through-Hole
  • Package/Case: Radial, Can
