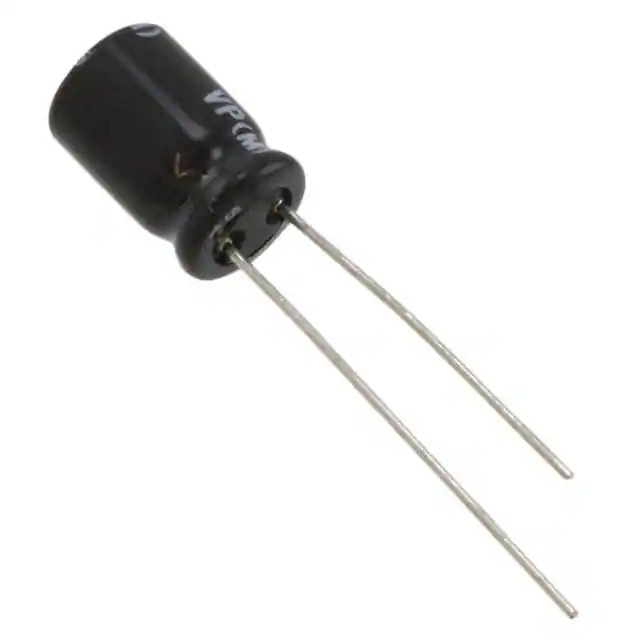

UVP1H330MPD1TD Nichicon
Same model may have multiple batches, images only for reference.

UVP1H330MPD1TD

Part No UVP1H330MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 50V RADIAL / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet
UVP1H330MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVP
Product Status Not For New Designs
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Bi-Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358053-UVP1H330MPD1TD
Ultra Librarian 3D Model Ultra Librarian UVP1H330MPD1TD CAD Model

Description

The Nichicon UVP1H330MPD1TD is a through-hole aluminum electrolytic capacitor with a capacitance of 33 µF and a voltage rating of 50 V.

  • Series: UVP
  • Application: General Purpose
  • Capacitance: 33 µF
  • Voltage Rating: 50 V
  • Temperature Range: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Diameter: 8.00mm
  • Height: 13.00mm
  • Ripple Current (Low Frequency): 105 mA @ 120 Hz
  • Ripple Current (High Frequency): 210 mA @ 10 kHz
  • Lead Spacing: 3.50mm
  • Manufacturer: Nichicon
  • Status: Not Recommended for New Designs
